The Graco Reactor 3 H-50 is built for contractors who need higher output and advanced system control. This high-output polyurethane foam machine supports demanding spray foam applications where production capacity, material consistency, and equipment visibility matter.
High-Output Performance for Demanding Applications
The Graco Reactor 3 H-50 delivers up to 54 lb/min at a maximum pressure of 2,000 psi. It also supports up to 420 feet of heated hose.
That combination makes this polyurethane foam machine a strong fit for commercial, residential, roofing, and other high-production spray foam applications. Graco also lists the hydraulic Reactor 3 platform for in-plant OEM use.
Key Graco Reactor 3 H-50 Features
Graco designed the H-50 around a direct-drive hydraulic system with features that support performance, maintenance, and operator control.
Key features include:
- Direct-drive hydraulic pump with no flywheel or belt system
- Horizontal positive-displacement pump line
- Hydraulic cooling system
- Large touchscreen Advanced Display Module
- R3 hybrid heaters
- Independent A-side and B-side hose temperature control
- Large, easy-access inlet filters
- Separate temperature and pressure sensors
- Side-mounted fluid valves
- Oval gear flow meters for real-time ratio monitoring
- Reactor Connect with dashboards, reporting, GPS, and job tracking
These features give operators better visibility into the polyurethane foam machine while helping them monitor ratio, temperature, pressure, and system performance.

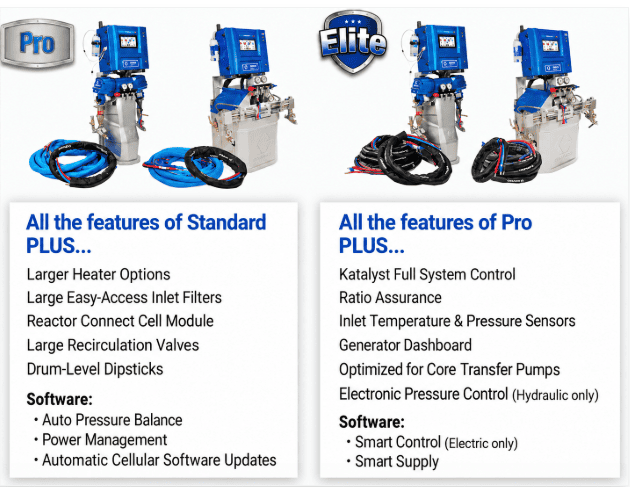

H-50 Pro and Elite Options
Graco Reactor 3 H-50 Elite Package Options
The H-50 Elite is available with several heated-hose package configurations. Graco lists externally heated and internally heated options for hydraulic H-50 systems.
Available H-50 package formats include:
- Single 50-foot externally heated hose package
- Single 50-foot internally heated hose package
- Six 50-foot externally heated hose package
- Three 100-foot internally heated hose package
- Elite package options available with Core transfer pumps
Internally heated hose packages use a 20-foot whip hose. Graco also states that its internally heated Xcelerator hoses warm up faster, are more flexible, and have a smaller diameter than traditional externally heated hose.
These package options make it easier to match the H-50 to the hose length, heating method, and material-feed setup required for the job.
Available With Graco Core E1 Transfer Pumps
Graco offers Reactor 3 Elite packages with Core transfer pumps. The Core pumps communicate with the Reactor 3 system to create a connected material-delivery setup from the drums to the proportioner.
When an Elite Reactor 3 uses compatible Core transfer pumps, contractors can activate Graco Katalyst System Intelligence. Katalyst helps manage material supply and can shut the system down when material runs out to help prevent air from entering the fluid system.
This integration gives contractors another option for building a more connected polyurethane foam machine system.
Shop the Graco Reactor 3 H-50 at Spray Foam Systems
Spray Foam Systems offers Graco Reactor 3 H-50 options for contractors who need high-output spray foam equipment.
Choosing the right setup comes down to the production level, hose configuration, transfer pumps, and system controls your operation requires.
Explore the Graco Reactor 3 H-50 options from SFS and find the polyurethane foam machine setup that fits your production needs.
FAQs
What is the maximum output of the Graco Reactor 3 H-50?
The H-50 delivers up to 54 lb/min at a maximum pressure of 2,000 psi. It can also support up to 420 feet of heated hose.
What is the difference between the H-50 Pro and Elite versions?
The Elite version adds advanced features such as ratio assurance, Smart Supply, Katalyst Full System Control, inlet sensors, and electronic pressure control.
Can the Graco Reactor 3 H-50 Elite come with Core E1 transfer pumps?
Yes. Graco lists Elite packages with Core transfer pumps, allowing compatible systems to use connected material-feed features and Katalyst System Intelligence.
