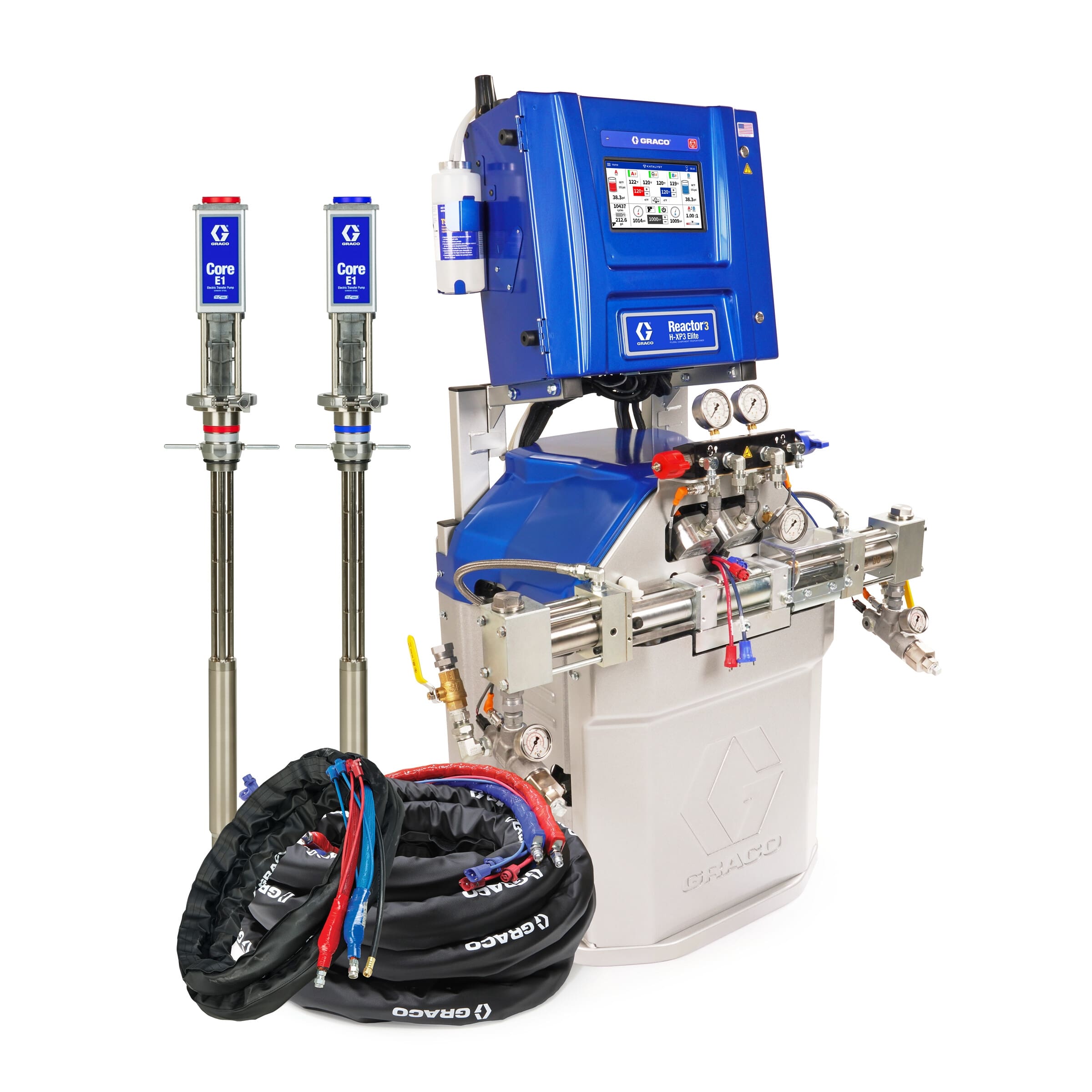

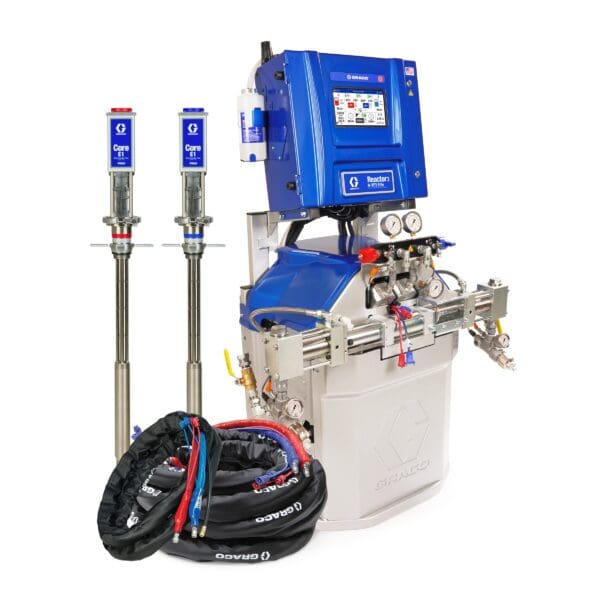

Graco CHR377 Reactor 3 H-50 Elite Package – #CHR377
Product Overview
The Graco CHR377 Reactor 3 H-50 Elite Package is engineered for high-demand spray foam applications, delivering up to 5 GPM at 350 psi. This fully electric system eliminates the need for compressed air, reducing energy costs and improving system simplicity.
Ideal for protective coatings, roofing systems, and general industrial use, the Reactor 3 H-50 Elite is compatible with Graco Reactor proportioners and provides dependable performance under pressure. It encompasses all the features of the reactor with SmartControl technology for precise flow regulation, ProConnect for quick service, and durable wetted components built for rugged jobsite conditions.
Key Features
Electric Efficiency
- Fully electric system eliminates the need for air compressors
- Reduces energy costs and system complexity
- Ideal for indoor or enclosed environments
High Output and Control
- Delivers up to 5 GPM (18.9 L/min) at 350 psi (24.1 bar)
- SmartControl technology provides smooth, consistent flow
- Excellent for high-viscosity coatings and roofing materials
Rugged Construction
- Includes Core E1 transfer pumps with wear-resistant internals
- Wetted parts made of carbon steel, stainless steel, PTFE, UHMWPE
- Durable frame and barrel hook for drum mounting
Fast Maintenance & Compatibility
- ProConnect allows for tool-free pump service and replacement
- WatchDog shutoff system protects against dry running
- Integrates with the Graco Reactor 3 H-50 Elite Package systems
Product Specifications
| Attribute | Value |
|---|---|
| Product Type | Electric Spray Foam Proportioner Package |
| Max Flow Rate | 5 GPM (18.9 L/min) |
| Max Pressure | 350 psi (24.1 bar) |
| Voltage | 230V AC |
| Phase | Single |
| Heater Capacity | 20 kW |
| Hose Length | 50 ft (15.2 m) internal heated hose |
| Whip Hose Length | 20 ft (6.1 m) Xcelerator whip hose |
| Included Features | SmartControl, ProConnect, WatchDog, Core E1 Transfer Pumps |
| Applications | Protective Coatings, Roofing, Industrial |
