#1 Source for Professional Spray Foam Equipment

Premium Spray Foam Equipment

Spray Foam Rigs

Reactor 3 E-30 Standard Tier Spray Foam Proportioner, 10 kW 26R330

Reactor 3 E-30 Standard Tier Spray Foam Proportioner, 10 kW 26R330

Manufacture part number: 26R330

SKU: 309448

The Graco Reactor 3 E-30 Standard Tier is a state-of-the-art electric spray foam proportioner designed to enhance efficiency and productivity for contractors engaged in residential and commercial spray foam applications. Its advanced features and robust design make it a reliable choice for professionals seeking consistent performance.



Check Out the Graco Reactor 3 Brochure to Learn More!

Total Price

$37,210.00

Payments as low as

$1,942.00

*Subject to financing approval

Get started with your rig purchase
Get A Quote
Talk to a specialist
Add to cart

The Graco Reactor 3 E-30 Standard Tier is a state-of-the-art electric spray foam proportioner designed to enhance efficiency and productivity for contractors engaged in residential and commercial spray foam applications. Its advanced features and robust design make it a reliable choice for professionals seeking consistent performance.



Check Out the Graco Reactor 3 Brochure to Learn More!

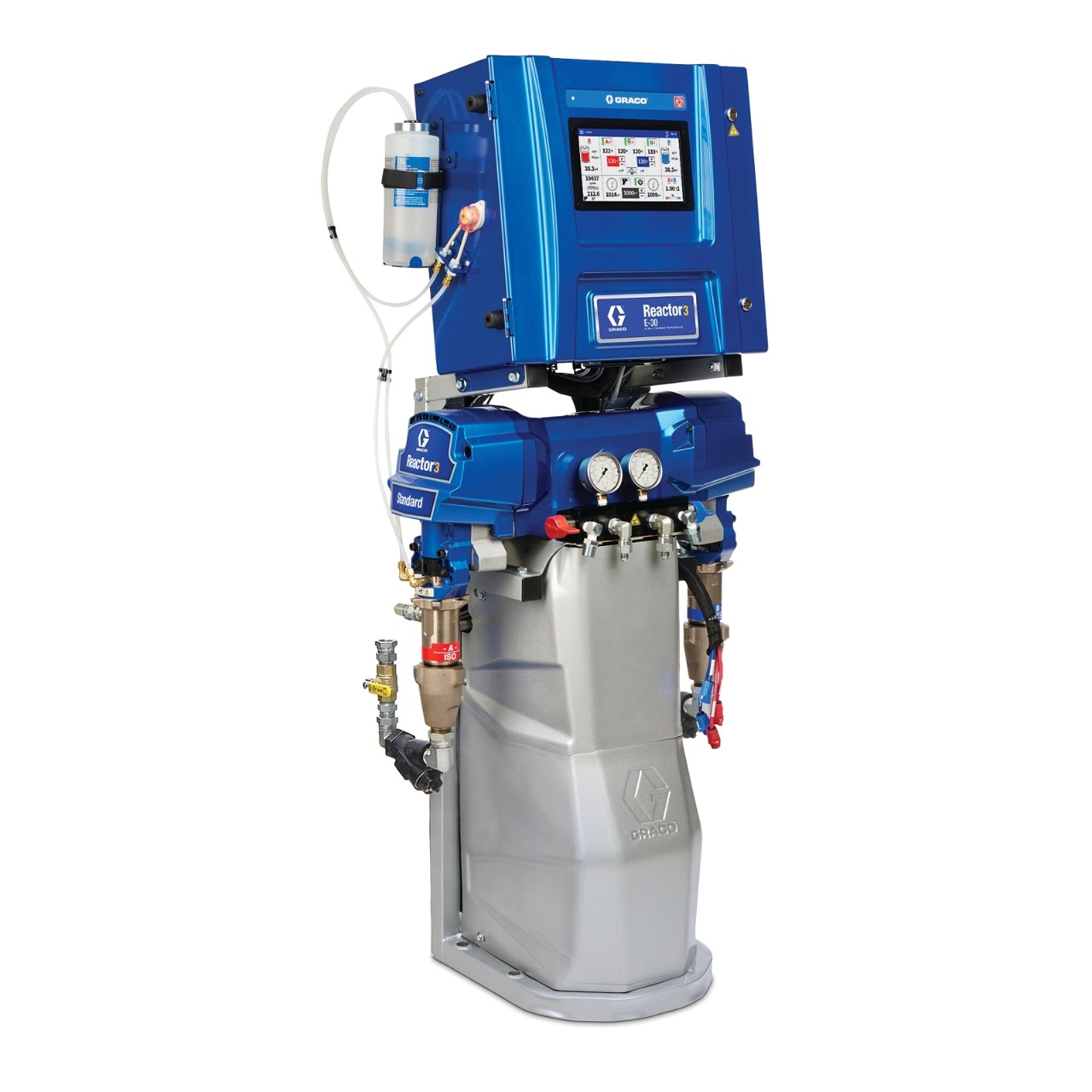

Graco Reactor 3 E-30 Standard Tier Spray Foam Proportioner – 10 kW (Model 26R330)

The Graco Reactor 3 E-30 Standard Tier is a state-of-the-art electric spray foam proportioner designed to enhance efficiency and productivity for contractors engaged in residential and commercial spray foam applications. Its advanced features and robust design make it a reliable choice for professionals seeking consistent performance.

Key Features:

  • Active ISO Lube Pump System: Equipped with a peristaltic pump, the system offers automatic timed circulation, extending the life of throat seal liquid (TSL) and reducing maintenance needs by eliminating check valves. The larger, easy-to-replace ISO lube bottle simplifies upkeep.

  • Advanced Display Module (ADM): The large touchscreen interface provides intuitive navigation, allowing operators to control all spray operations from a single screen, streamlining the user experience.

  • Independent Hose Control: Operators can set different temperatures for A and B materials, improving pressure balancing and optimizing material yield.

  • Advanced Electric Design: Features a brushless motor for enhanced pressure and flow performance, new temperature control boards for independent hose heating, and voltage jumpers for easy switching between voltages. The robust UL-listed electrical hose connectors are color-coded and keyed to prevent assembly errors. Additionally, it offers connectivity with Tier 4 engines for ADM engine diagnostics.

  • Compact Footprint: The reduced size provides additional space in your rig, while the compact design protects flow meters and hose connections from potential damage during transport and operation.

Technical Specifications:

  • Maximum Flow Rate: Up to 30 lbs/min (13.5 kg/min)​

  • Maximum Spray Pressure: 2,000 psi (14 MPa)​

  • Maximum Fluid Temperature: 190°F (88°C)​

  • Power Requirements: Compatible with 200-240 VAC single-phase, 200-240 VAC three-phase DELTA, and 350-415 VAC three-phase WYE configurations​

  • Amperage: 76A for single-phase; 49A for three-phase DELTA; 35A for three-phase



Graco R3 Operation Manual

Weight

369 lbs

Dimensions

54

X .39

X .34 in

Free Shipping

0

Brand

Graco

ASIN

Display in product feed (1 = Yes; 0 = No)

1

Make a smart investment.

FinancinG Resources

Still have questions?

Call a sales rep

Video Resources

View all

Graco Reactor 3 - Spray Foam Systems ProPAK 300 Spray Rig

Graco Mobile Spray Foam and Polyurea Rigs

ProPak 200 Slider Spray Foam Rig

Frequently Asked Questions

What is spray foam insulation?

Spray Polyurethane Foam (SPF) is a spray applied plastic that provides insulation while providing an air and moisture barrier for roofs, attics, crawlspaces, walls and basements. Spray Foam is a two-component foam that includes an “A” side of isocyanate and a “B” side of Resin and when combined creates a chemical reaction to make foam. After the chemicals are mixed by a trained professional, the foam is dispensed through professional equipment at high heat as a liquid and expands as it sprayed on to a substrate filling any cracks, gaps and voids. Spray Foam Insulation comes in the form of open and closed cell foams. Open cell foam is a light density half pound foam, that can expand up to 100 times when sprayed and has a sponge like texture. Most open cell foam applications are used in the interior of buildings and provide noise-reduction. Closed cell foam is a medium to high density 2 pound foam that is air and water impermeable. Closed cell foam is used for interior building applications, exterior building applications lifting and has a ridged like texture.

A power source (generator or shore power), a proportioner, a compressor, an air dryer, transfer pumps, a hose and guns. These are main components, but further customizations are available, and our sales representatives will help you find the best equipment for your spraying needs.

The warranty on a spray foam insulation rig varies by manufacture. The typical warranty is one year on all components.

The total average cost, including all necessary components is around $100k. Spray Foam Systems makes low-cost options like our cart setups or our mobile spray rigs that average between $50 – $80k.

Yes. We have multiple lenders that offer financing. Financing options and requirements to finance vary by company, however, many lenders have 0% interest available. Submit a financing information request and a member of our team will be happy to assist you!
