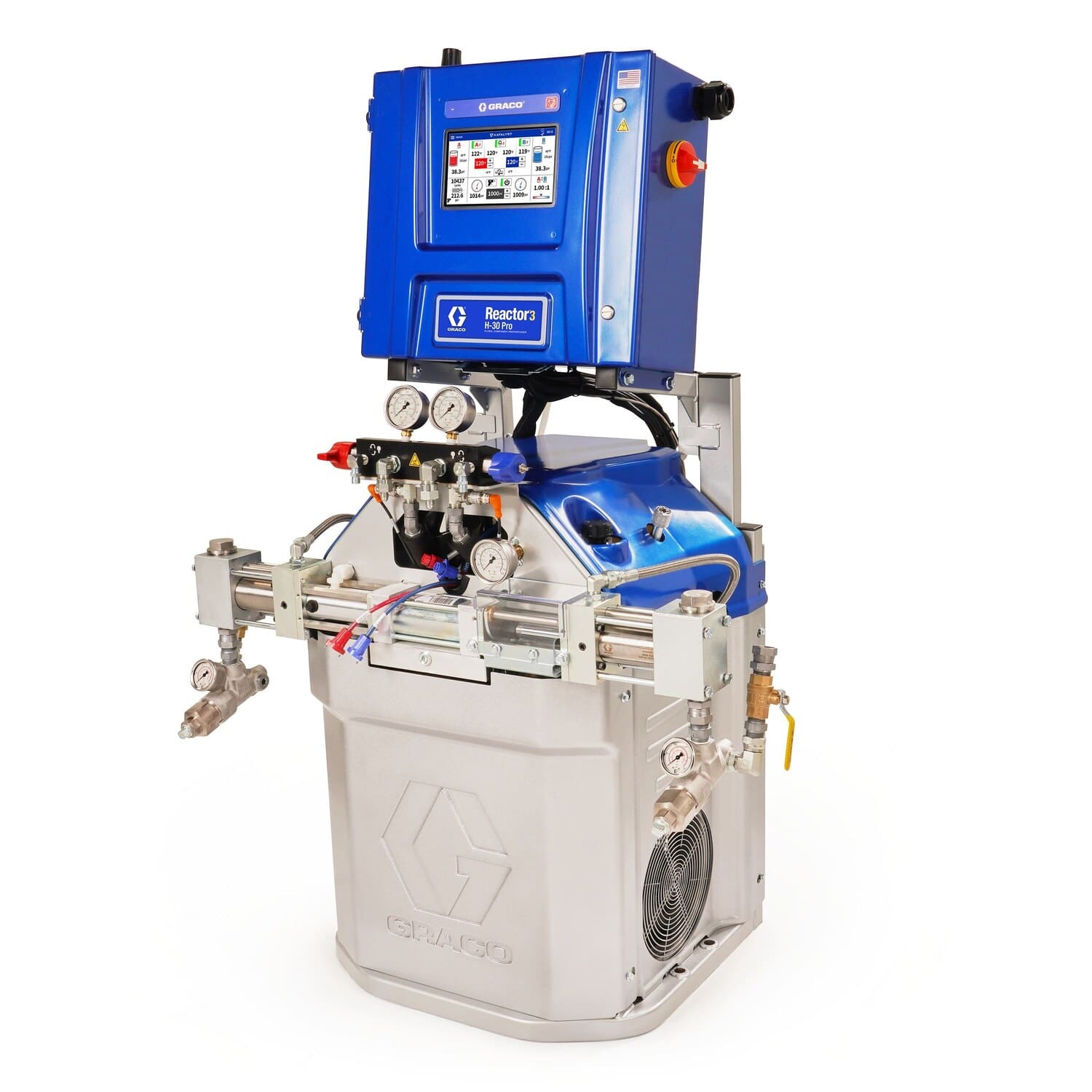

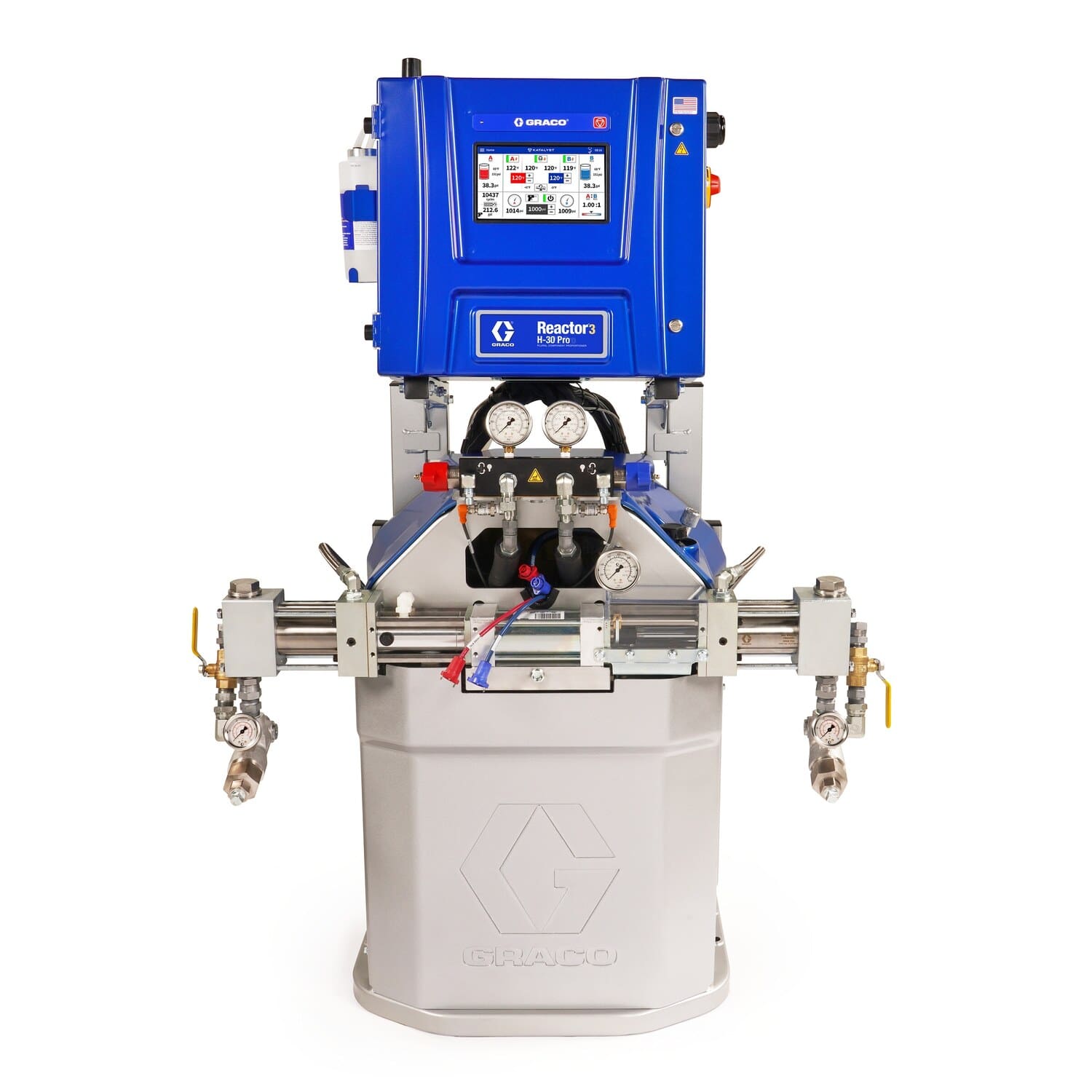

Graco Reactor 3 H-30 Pro Hydraulic Proportioner – Part #27R355
Product Overview
The Graco Reactor 3 H-30 Pro (27R355) is a high-output hydraulic spray foam proportioner designed to handle demanding spray applications with precision and ease. Engineered for reliability, this system delivers up to 30 pounds per minute and supports hose lengths up to 320 feet, making it ideal for residential, commercial, and industrial projects.
Combining the durability of the original H-series with the advanced controls of Reactor 3, the 27R355 offers a streamlined user experience, reduced maintenance, and maximum uptime. With real-time data reporting, customizable controls, and Graco’s proprietary Reactor Connect app, the H-30 Pro sets the new standard in hydraulic foam proportioning.
Key Features
Direct Drive Hydraulic Power
- Removes belts and flywheels for fewer moving parts and quieter operation
- Compact design for easier installation and maintenance
- Integrated cooling fan maintains consistent oil temperature
Advanced Control System
- Touchscreen Advanced Display Module (ADM) for simplified navigation
- Single-screen operation for all spray functions and diagnostics
- Reactor Connect remote monitoring with real-time reports and GPS tracking
Enhanced System Performance
- R3 Hybrid Heaters maintain material temperature at maximum flow
- Oval gear flow meters monitor real-time output and ratio accuracy
- Independent hose heat control for better pressure balancing
Maintenance and Longevity
- Easy-access fluid manifold and separate inlet sensors for temperature and pressure
- Extended oil life with improved hydraulic system design
- Horizontal pumps ensure smooth changeovers and long service life
Product Specifications
| Attribute | Details |
|---|---|
| Max Flow Rate | 30 lb/min (13.6 kg/min) |
| Max Pressure | 2000 psi (138 bar) |
| Heater Capacity | 15 kW |
| Hose Length Capacity | Up to 320 ft (97.5 m) |
| Power Type | Hydraulic |
| Control Interface | Advanced Display Module (ADM) |
| Remote Monitoring | Reactor Connect (Wi-Fi & Cellular) |
| Heater Type | R3 Hybrid Heaters |
| Flow Meter | Oval Gear Meters (Ratio Assurance) |
| Compatible Materials | Spray Polyurethane Foam (SPF) |
