Smart Technology for Serious Spray Foam Jobs
The Graco Reactor 2 E-30 Standard (SKU# 140287) is a professional-grade electric proportioner engineered for spraying polyurethane foam with consistent heat, output, and ratio control. Designed for mid-range spray foam applications, this model is built to deliver reliable performance on residential, trailer-rig, and light commercial jobs.
Whether you’re upgrading from an older proportioner or building a new mobile setup, the Reactor 2 E-30 Standard offers the smart features and dependable operation Graco is known for.
1. Controls & Technology
The Reactor 2 E-30 Standard comes with Graco’s Advanced Display Module (ADM)—a touchscreen digital interface that allows operators to manage spray parameters, monitor system health, and control hose heat from one central hub.
The unit supports three different hose control modes—FTS (Fluid Temperature Sensor), Resistance, and Manual—to match the hose heating method to jobsite needs. Users can also log system data, download job details via USB, and store up to 24 customizable spray recipes for quick switching between projects​.
2. Output & Performance
- Max Flow Rate: 30 lb/min
- Working Pressure: 2000 psi
- Heater Power: 10 kW
- Heated Hose Support: Up to 310 ft (including whip)
- Ideal For: Spray foam insulation in homes, trailers, box trucks, and commercial interiors
Thanks to its consistent heating, balanced output, and ratio control, the Reactor 2 E-30 Standard ensures smooth, even spray patterns and high-quality foam every time.
3. Compatibility & Power Configuration
The E-30 Standard is compatible with leading Graco spray foam equipment, including Fusion AP, CS, and P2 spray guns, and integrates easily with Graco Power-Lock Heated Hose systems for enhanced hose temperature control and system diagnostics.

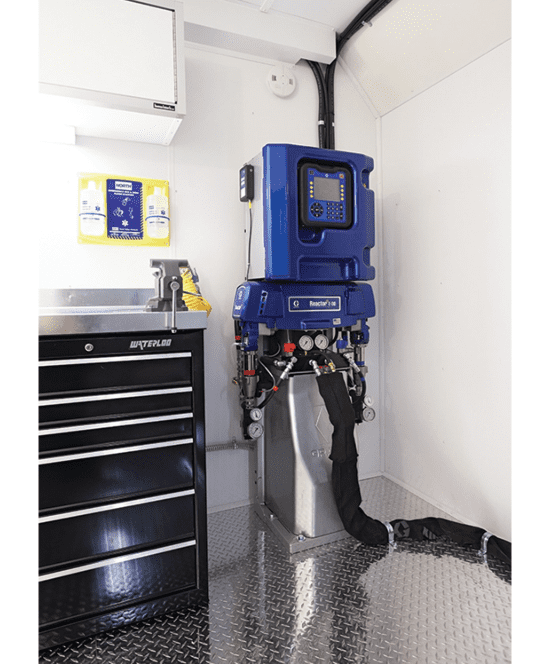

It operates on a 3-phase electrical supply and is suitable for trailer rigs, enclosed box trucks, and mobile jobsite operations. This versatility makes it easy to integrate into both new builds and retrofit setups.
4. Maintenance & Service Accessibility
Routine maintenance is straightforward. The wet cups, inlet strainers, and ISO lubrication system are all easy to access and check. Graco recommends:
- Keeping wet cups 2/3 full of TSL® at all times
- Inspecting and flushing inlet strainers daily
- Monitoring ISO lubricant and replacing it if it becomes discolored or contaminated​
Additionally, system alerts and event logs are displayed on the ADM and can be downloaded for troubleshooting and recordkeeping​.
5. Durable Design Built for the Field
The Reactor 2 E-30 is housed in a compact, upright frame (23.6″ W x 15″ D x 63″ H) that protects critical components during transport and use. At just 315 lbs, it fits easily into a standard spray rig or trailer configuration without sacrificing floor space or accessibility.
This robust build is field-tested to handle real-world jobsite conditions while minimizing maintenance requirements and maximizing uptime.
6. Why Choose the Graco Reactor 2 E-30 Standard?
- Digital touchscreen controls with customizable spray recipes
- 10 kW heater power for reliable thermal consistency
- Supports up to 310 ft of heated hose
- Compatible with Graco Power-Lock hoses and Fusion guns
- Daily service points easily accessible
- Smart USB logging and error tracking built-in
The Graco Reactor 2 E-30 Standard, 10kW (SKU# 140287) is a reliable, high-performing electric proportioner made for insulation professionals who need dependable equipment on every job.
