How to Troubleshoot Your Graco Spray Foam Insulation Machine: Common Issues and Quick Fixes

When your spray foam insulation machine stops performing correctly, downtime can quickly disrupt your schedule and impact profits. Fortunately, most Graco Reactor issues are easy to identify and repair once you understand the error codes and system indicators. In this blog, we’ll walk through the most common Graco error codes, what causes them, and how to fix them to get your machine back to peak performance.

Understanding Graco Error Codes

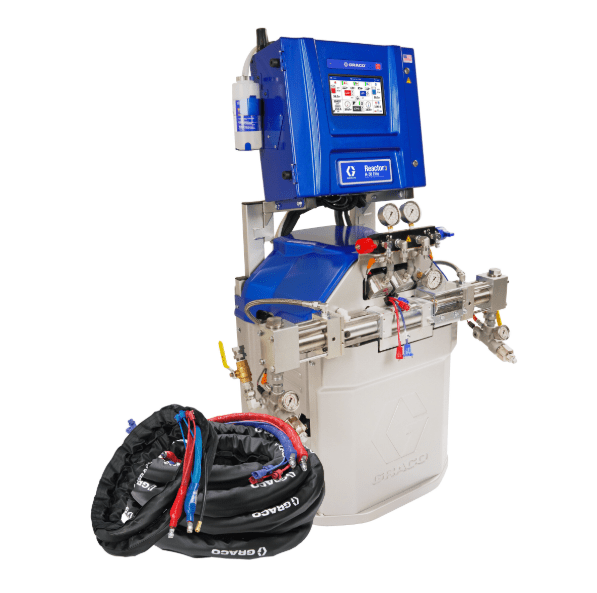

Graco Reactors, including Reactor 2 and Reactor 3 models, display error codes when a system fault occurs. Each code identifies which system—heater, pressure, motor, or communication—needs attention. Below are the most common error codes and how to troubleshoot them.

E01 – High Fluid Temperature

• Check fluid temperature using an external thermometer to confirm accuracy.
• Inspect thermocouple wiring and connections for damage or looseness.
• Verify over-temperature switches are functioning correctly.
• Swap heater modules between zones to identify a faulty module.

E02 – High Current in Heater Zone

• Look for a short in heater wiring or a failed heater module.
• Test the contactor; replace it if it’s not engaging.
• Inspect the power supply and ensure proper voltage to the heater circuit.

E03 – No Current Detected

• Check fuses and connections on the affected heater circuit.
• Inspect wiring between the control board and heater.
• Replace the heater module if no continuity is detected.

E04 – Missing or Damaged Thermocouple

• Ensure all thermocouple connectors are seated properly.
• Replace damaged or corroded thermocouples.
• Verify sensor calibration within the machine’s control settings.

E05 – Pressure Imbalance

• Inspect A and B pressure transducers for secure connections.
• Replace faulty transducers if readings differ significantly.
• Check for material restrictions or hose blockages causing imbalance.

E06 – Hose Temperature Out of Range

• Verify hose heat transformer and temperature sensors are working.
• Check for broken or pinched hose heat wires.
• Ensure hose heat setpoint matches ambient temperature needs.

E07 – Fluid Temperature Too Low

• Allow heaters to reach full operating temperature.
• Confirm thermocouples are reading correctly.
• Inspect the power supply to heater zones.

E08 – Overcurrent on Hose Heat

• Disconnect hose and check for damaged insulation or exposed wiring.
• Inspect the transformer for proper operation.
• Replace the hose heater fuse if necessary.

E09 – Motor Overload

• Check for excessive back pressure or clogs in the proportioner.
• Inspect motor wiring for short circuits or burned insulation.
• Verify voltage and amperage match the machine’s requirements.

E10 – Drive Fault Detected

• Check drive module connections for tightness.
• Ensure the motor and drive are not overheating.
• Replace the motor drive module if persistent.

E11 – Line Voltage Out of Range

• Verify incoming power is within 208–230V for standard units.
• Check generator or shore power source for stability.
• Inspect the power cable for frays or loose terminals.

E12 – Phase Missing or Reversed

• Confirm all three phases are present and properly aligned.
• Inspect contactors and fuses for continuity.
• Correct phase rotation as needed.

E20 – Sensor Calibration Error

• Recalibrate temperature or pressure sensors through the control panel.
• Replace faulty sensors if calibration fails.
• Inspect wiring harnesses for corrosion or pin damage.

E21 – Pressure Transducer (A Side)

• Inspect transducer wiring for secure connection.
• Swap A and B transducers to isolate the issue.
• Replace the transducer if error moves with the sensor.

E22 – Pressure Transducer (B Side)

• Follow the same steps as E21 for the opposite side.
• Clean or replace the transducer if necessary.
• Verify pressure signals through the display menu.

E23 – Heater Control Communication Lost

• Check CAN communication cables between control boards.
• Inspect connectors for bent pins or moisture intrusion.
• Replace the communication harness if damaged.

E24 – Data Timeout

• Ensure all communication cables are tight and undamaged.
• Power cycle the system to reset control boards.
• Replace control board if timeout persists.

E25 / E26 – Overtemperature A or B Heater

• Verify thermocouples are properly reading temperature.
• Inspect heater elements for shorts or burnout.
• Replace faulty heater modules as needed.

E27 – High Motor Temperature

• Reduce workload or pressure temporarily.
• Clean the motor’s cooling fan and vents.
• Move the spray foam insulation machine to a cooler area if overheating continues.

E28 – Low Motor Voltage

• Inspect incoming power for proper voltage.
• Check transformer connections.
• Replace power cords or connectors showing signs of wear.

E29 – Main Board Communication Fault

• Check the main board and display cable connections.
• Reseat all plugs to ensure clean contact.
• Replace the main control board if error persists.

E30 – Display Communication Error

• Inspect the ribbon cable between the display and main board.
• Ensure both ends are secure and undamaged.
• Replace the display or control board if communication cannot be restored.

E31 – Invalid Setpoint

• Verify temperature and pressure setpoints fall within allowable ranges.
• Reset parameters through the control interface.
• Replace the control board if setpoints continue to read incorrectly.

E99 – General System Fault

• Power cycle the system to reset all modules.
• Check every board, fuse, and sensor connection.
• If unresolved, contact a certified Graco service technician.

Preventive Maintenance Tips

Performing preventive maintenance is the best way to avoid downtime with your spray foam insulation machine:

• Inspect and clean thermocouple connections regularly.
• Keep spare parts such as transducers, fuses, and heater modules available.
• Record recurring error codes to identify patterns.
• Schedule annual calibration and inspection services.

When to Call for Professional Support

If your spray foam insulation machine displays multiple errors or continues to fault after basic troubleshooting, contact an authorized Graco service center. Trained technicians can test control boards, wiring harnesses, and sensors using specialized diagnostic tools.

Need help troubleshooting your Graco Reactor? Visit our Graco Equipment Collection or contact Spray Foam Systems to schedule service or request replacement parts today.

FAQs

1. What does an E01 code on my spray foam insulation machine mean?
E01 indicates high fluid temperature. This can result from faulty thermocouples, disconnected wiring, or overheating in the heater module.

2. Why is my Graco Reactor showing an E30 communication error?
E30 appears when the display and control board lose communication. Check the ribbon cables and board connectors for damage or corrosion.

3. My machine isn’t heating properly even without an error code. What should I check first?
Confirm that the hose heat transformer is working, verify continuity in the heater wiring, and ensure thermocouples are properly connected.
