A Graco spray foam rig is made up of several key components that must work together for reliable spray foam installation. Among the most important pieces of equipment are transfer pumps, heated hoses, and spray guns. When these components operate correctly as a system, contractors can achieve consistent foam quality, proper material flow, and efficient jobsite performance.
Understanding how each part of a Graco spray foam rig functions helps contractors maintain equipment, prevent downtime, and produce better results on every project.

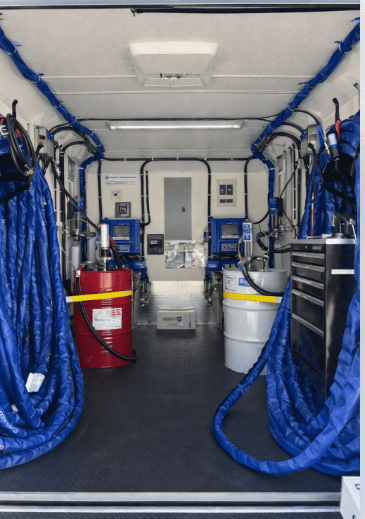

The Core Components of a Graco Spray Foam Rig
A complete Graco spray foam rig includes multiple systems that work together to move, heat, and mix spray foam materials. While proportioners and generators often get the most attention, several supporting components play critical roles.
Key equipment includes:
Each of these components supports the material flow process that allows a Graco spray foam rig to deliver properly mixed spray foam to the surface being insulated.
How Transfer Pumps Supply Material
Transfer pumps are responsible for moving raw spray foam chemicals from material drums to the proportioner.
On a Graco spray foam rig, transfer pumps typically draw material directly from 55-gallon drums and send it to the proportioner at a steady pressure.
Important roles of transfer pumps include:
- Feeding A-side (isocyanate) material to the system
- Feeding B-side (resin) material to the system
- Maintaining steady pressure to prevent cavitation
- Supporting continuous spraying during long projects
Without properly functioning transfer pumps, a Graco spray foam rig cannot maintain consistent material flow. This can lead to off-ratio foam, poor spray patterns, and equipment interruptions.
Routine inspection of transfer pump seals, filters, and air supply helps keep the entire spray foam system operating smoothly.
Why Heated Hoses Are Essential
Once the proportioner pressurizes and heats the materials, the next step is transporting them to the spray gun.
Heated hoses perform this task by maintaining proper material temperature while carrying chemicals from the proportioner to the applicator.
Heated hoses on a Graco spray foam rig provide several important benefits:
- Maintain material temperature for proper mixing
- Prevent foam chemicals from cooling before application
- Allow contractors to spray farther from the rig
- Support consistent spray patterns across large jobs
Most contractors rely on hose lengths between 150 and 300 feet depending on project size. Maintaining hose heat and insulation is critical for keeping a Graco spray foam rig running efficiently during long spray sessions.
The Role of the Spray Gun in Foam Application
The spray gun is the final stage of the system where A-side and B-side materials combine.
Inside the spray gun, the two chemicals mix under pressure and react to form spray foam insulation. Because of this process, the gun is one of the most important parts of a Graco spray foam rig.
Spray guns are responsible for:
- Mixing A and B chemicals at the correct ratio
- Delivering foam to the target surface
- Controlling spray pattern and output
- Allowing the contractor to apply insulation precisely
Common spray guns used on a Graco spray foam rig include mechanical purge and air purge designs. Proper maintenance of chambers, seals, and mixing components helps prevent buildup and keeps the system spraying clean foam.
How These Components Work Together
The spray process follows a specific sequence inside a Graco spray foam rig.
- Transfer pumps draw material from chemical drums.
- The proportioner heats and pressurizes the chemicals.
- Heated hoses transport the materials to the spray gun.
- The spray gun mixes the materials and applies foam to the surface.
When all parts operate together correctly, a Graco spray foam rig delivers consistent foam density, smooth spray patterns, and reliable production speeds.
Contractors who understand this process can diagnose issues faster and maintain equipment more effectively.
Common Maintenance Practices for Spray Foam Rigs
Routine maintenance helps keep every component of a Graco spray foam rig operating properly.
Contractors should regularly inspect:
- Transfer pump air motors and seals
- Heated Hoses and air connections
- Spray gun chambers and seals
- Material filters and screens
- Air supply and moisture control equipment
Consistent maintenance prevents downtime and extends the lifespan of a Graco spray foam rig, especially for contractors who spray foam daily.
Why Equipment Integration Matters for Contractors
A well-maintained Graco spray foam rig allows contractors to complete insulation jobs faster and with greater consistency.
When heated hoses, transfer pumps, and spray guns function together properly, contractors benefit from:
- Improved foam quality
- Reduced equipment downtime
- Faster installation speeds
- More consistent spray coverage
- Greater jobsite efficiency
For contractors who rely on spray foam insulation as a primary service, understanding how these components work together can significantly improve productivity and equipment performance.
FAQs
What components make up a Graco spray foam rig?
A typical Graco spray foam rig includes a proportioner, heated hoses, spray gun, transfer pumps, generator, air compressor, and air dryer. These components work together to move, heat, mix, and apply spray foam materials.
Why are heated hoses important on a spray foam rig?
Heated hoses maintain the correct temperature of spray foam chemicals as they travel from the proportioner to the spray gun. Proper temperature control helps a Graco spray foam rig produce consistent foam quality.
What do transfer pumps do on a Graco spray foam rig?
Transfer pumps move A-side and B-side materials from chemical drums to the proportioner. Reliable transfer pumps help maintain steady material flow throughout the Graco spray foam rig system.
