The Graco R3 E20 Elite Slider Series delivers professional performance in a compact and organized platform. Contractors rely on this Graco spray foam rig for consistent output, dependable controls, and jobsite flexibility. Built as part of the ProPAK 200 configuration, it combines proven Graco components with a space-saving slider layout that maximizes workflow efficiency.
Reactor 3 E-20 Elite at the Core
At the center of this Graco spray foam rig is the Graco Reactor 3 E-20 Elite proportioner. This electric system provides accurate ratio control and stable heating, which directly affects foam quality and yield. Because temperature and pressure stay balanced, contractors achieve consistent expansion and adhesion.
Key performance benefits include:
- Advanced digital controls for precise temperature management
- Real-time diagnostics for faster troubleshooting
- Balanced pressure control between A and B materials
- Reliable electric performance for residential and light commercial work
As a result, this Graco spray foam rig supports steady production without requiring a hydraulic platform.

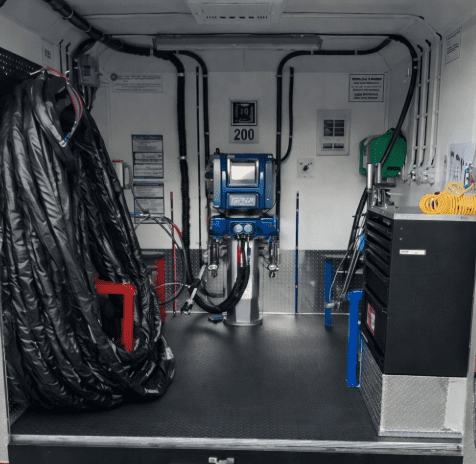

Slider Series Elite Layout
The Slider Series Elite setup is designed for organization and accessibility. Equipment mounts on a sliding rail system, which improves serviceability and maximizes trailer space. Instead of working around tightly packed components, crews can access critical parts quickly.
Most importantly, the slider configuration supports jobsite safety:
- The sliders allow the equipment to be pulled out of the trailer during operation, helping prevent exhaust fumes from entering the trailer interior and reducing safety risks.
Because ventilation matters on every jobsite, this feature makes the Graco spray foam rig safer and more practical for daily use.
210′ Internally Heated Hose for Extended Reach
This configuration includes 210 feet of internally heated hose. Proper hose heating maintains consistent material temperature from the proportioner to the spray gun. Therefore, foam remains stable even during longer spray runs.
Benefits include:
- Stable temperature across long hose runs
- Reduced pressure fluctuation
- Improved foam consistency and cell structure
- Greater mobility on larger projects
Extended hose reach allows one Graco spray foam rig to cover more area with fewer repositioning moves, which increases productivity.
E1 Transfer Pumps for Consistent Material Flow
The system uses 2 Core E1 transfer pumps to move material from drums to the proportioner. Reliable transfer pumps maintain steady supply pressure, which protects ratio accuracy.
Advantages include:
- Smooth material delivery
- Reduced cavitation risk
- Consistent feed pressure
- Durable construction for daily use
Because material flow directly impacts spray quality, strong transfer pumps strengthen the overall performance of the Graco spray foam rig.
Fusion PC Spray Gun Precision
The Fusion PC gun remains an industry standard for professional foam application. It provides consistent mixing at the tip, which improves spray pattern quality and foam structure. In addition, it supports fast maintenance between jobs.
Key features include:
- Lightweight and balanced design
- Quick-clean mix chamber access
- Consistent atomization
- Durable build for high-volume spraying
When paired with the Graco Reactor 3 E-20 Elite, the Fusion PC gun completes a dependable Graco spray foam rig setup designed for consistent field performance.
22kW Gas Generator and 4HP Compressor
Power and air supply remain critical components of any spray system. This setup includes a 22kW gas generator and a 4HP compressor to support full spray operations. Because the system carries its own power source, crews can work independently of external utilities.
This combination delivers:
- Reliable onboard electrical power
- Consistent compressed air supply
- Flexibility on remote jobsites
- Greater deployment efficiency
As a result, this Graco spray foam rig operates confidently across residential builds, agricultural structures, and light commercial projects.
Ideal Applications
The R3 E20 Elite Slider Series configuration works well for:
- Residential wall insulation
- Attic spray foam projects
- Pole barns and metal buildings
- Retrofit insulation upgrades
- Small to mid-sized commercial jobs
Contractors who want balanced production capacity, modern controls, and organized rig layout often choose this Graco spray foam rig as a long-term equipment solution.
FAQs
What makes the R3 E20 Elite different from other setups?
The R3 E20 Elite combines Graco Reactor 3 digital controls with the Slider Series Elite layout, creating an organized and service-friendly Graco spray foam rig designed for consistent mid-range production.
Is this Graco spray foam rig suitable for commercial work?
Yes. This Graco spray foam rig performs well on residential and light commercial projects where dependable output and organized layout matter.
Why does hose length matter on a Graco spray foam rig?
Long internally heated hose helps maintain stable material temperature and gives crews greater reach, allowing a Graco spray foam rig to cover larger structures with fewer repositioning moves.
