When it comes to spray foam equipment, every component plays a critical role in performance and reliability. Among these, heated hoses are essential for maintaining temperature control and ensuring consistent foam application. Graco offers a wide range of heated hoses designed to meet various needs, from standard insulation jobs to high-pressure industrial applications. This guide covers the main types of Graco heated hoses and how to choose the best one for your spray foam equipment setup.
Why Heated Hoses Matter
A heated hose keeps materials at a stable temperature as they travel from the proportioner to the spray gun. Without proper heat management, foam materials can thicken or separate, resulting in poor mix quality or uneven spray patterns. Using the right heated hose in your spray foam equipment ensures even heating, consistent pressure, and smoother operation throughout the job.

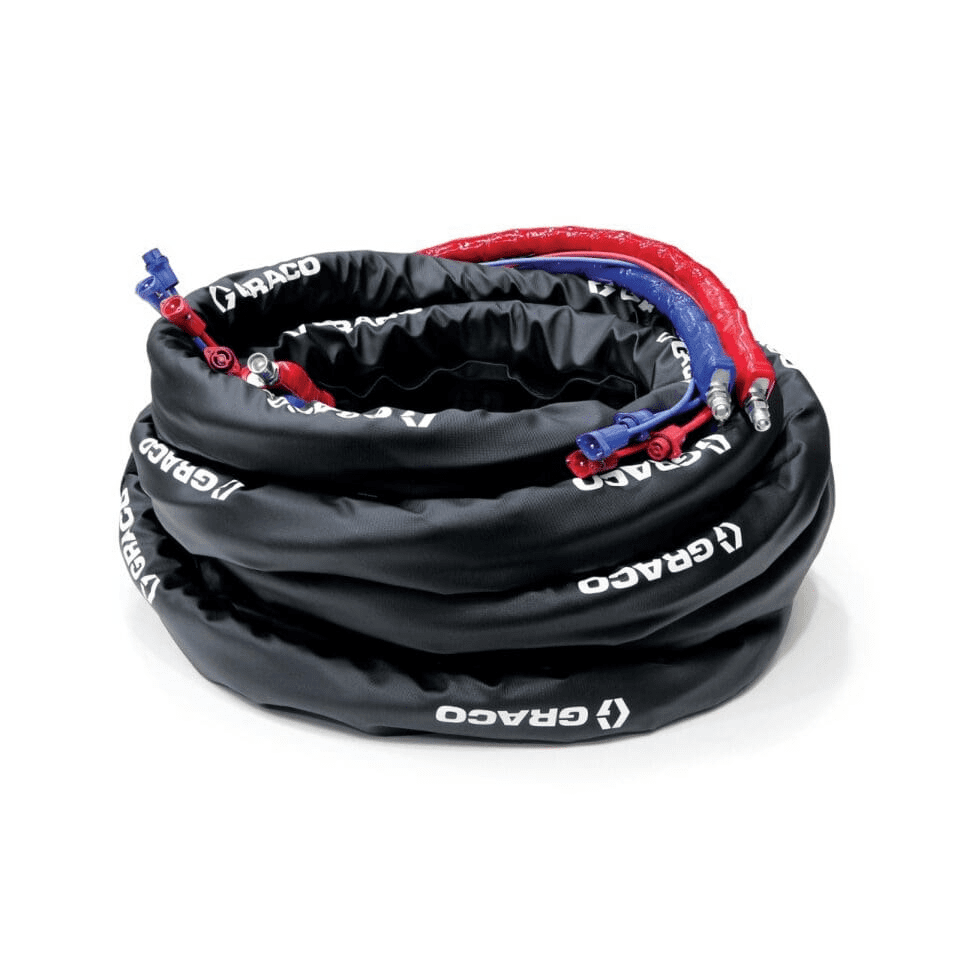

Types of Graco Heated Hoses
Graco’s heated hoses are built for performance, durability, and compatibility with a variety of spray foam systems. Below are the main types available for different spray foam equipment setups:
- Standard 2,000 PSI Heated Hoses – These hoses work best for residential and commercial spray foam equipment. They come in multiple diameters and lengths to match your system’s needs. You can choose versions with thermocouple wiring for precise temperature monitoring or without wiring for simpler configurations.
- High-Pressure 3,500 PSI Heated Hoses – For contractors handling large-scale or demanding jobs, these hoses deliver stronger performance and extended reach. They maintain material consistency under higher flow rates and help your spray foam equipment perform efficiently even on the toughest projects.
- Whip and Specialty Hoses – Short, flexible whip hoses improve control near the spray gun and reduce strain during operation. In addition, protective accessories such as scuff guards and insulation sleeves increase hose life and keep your setup running smoothly.
- R2 and R3 Heated Hose Options – Graco’s latest Reactor 2 (R2) and Reactor 3 (R3) systems offer both internal and external heated hose designs.
- R2 Internal Heated Hoses use a built-in copper resistance wire that runs through the hose, distributing heat evenly for consistent material temperature. They provide accurate temperature control for Reactor 2 systems and maintain steady heat throughout the spray path.
- R3 External Heated Hoses feature an upgraded external heating wrap that warms faster and keeps temperature more stable over long hose lengths. Because the heating element is located outside the hose, technicians can replace it easily without removing the entire line.
- Both R2 and R3 hoses integrate seamlessly with their specific proportioners, ensuring accurate readings from temperature sensors and smooth control through each zone. As a result, these options make upgrading or maintaining your spray foam equipment simpler and more efficient.
Choosing the Right Graco Heated Hose
Selecting the correct heated hose for your spray foam equipment depends on several important factors:
- Pressure and Flow Requirements – Choose a hose with a pressure rating that exceeds your system’s maximum operating level. Standard rigs typically use 2,000 PSI hoses, while larger or high-output rigs benefit from 3,500 PSI options.
- Hose Diameter and Length – Larger diameters allow higher flow rates but may reduce heat retention if mismatched. Longer hoses increase heat loss and pressure drop, so additional heating zones may be necessary for optimal performance.
- Thermocouple and Compatibility – Hoses with thermocouple wiring enable precise temperature monitoring through your spray foam equipment controls. Always verify that fittings, voltage, and heater zones are compatible before installation.
- Durability and Maintenance – Inspect hoses regularly for signs of wear, cracks, or damaged insulation. Adding protective accessories like scuff guards and insulation sleeves helps extend service life and reliability.
Getting the Most from Your Spray Foam Equipment
The right Graco heated hose can make a significant difference in your spray foam equipment’s performance and reliability. Whether you need standard 2,000 PSI hoses for everyday applications or 3,500 PSI high-pressure options for advanced rigs, choosing based on system compatibility and job requirements ensures consistent results. Regular maintenance, proper temperature control, and the right accessories will keep your spray foam setup performing at its best.
Shop heated hoses at Spray Foam Systems to find the right option for your rig. Our team is ready to help you choose the perfect match for your equipment and application needs.
FAQs
Q1: How often should heated hoses be replaced in spray foam equipment?
Heated hoses should be inspected before each job and replaced when signs of wear, exposed wiring, or leaks appear. With proper maintenance, most hoses last several seasons depending on job frequency and storage conditions.
Q2: Can different hose types be connected together?
Yes, but all hoses must meet the same pressure and temperature requirements. Mixing 2,000 PSI and 3,500 PSI hoses is not recommended unless your system operates safely below the lowest-rated hose pressure.
Q3: Do longer hoses require more power to heat?
Yes, longer hoses experience more heat loss and require higher energy output from your spray foam equipment. Systems with multiple heating zones can help balance temperatures across extended hose lengths.
