Winco WL22000VE-03/C Portable Generator- 22,000 Watts, Vanguard Engine -24022-007

Name: Winco WL22000VE-03/C Portable Generator- 22,000 Watts, Vanguard Engine -24022-007
SKU: 238041
Price: 7685.50 USD
Availability: InStock

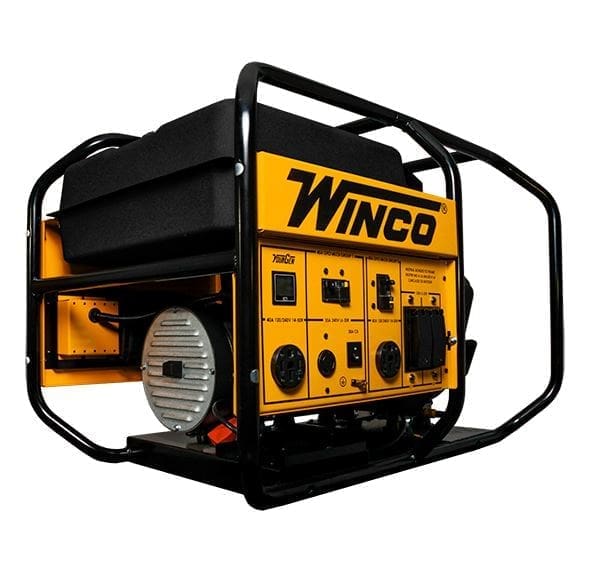

Winco WL22000VE-03/A portable generator with 14-50 receptacle panel front view

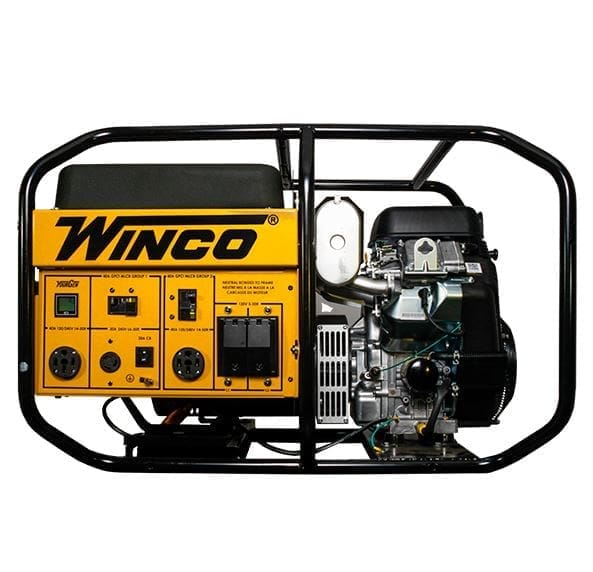

Winco WL22000VE-03/A portable generator with 14-50 receptacle panel side front view

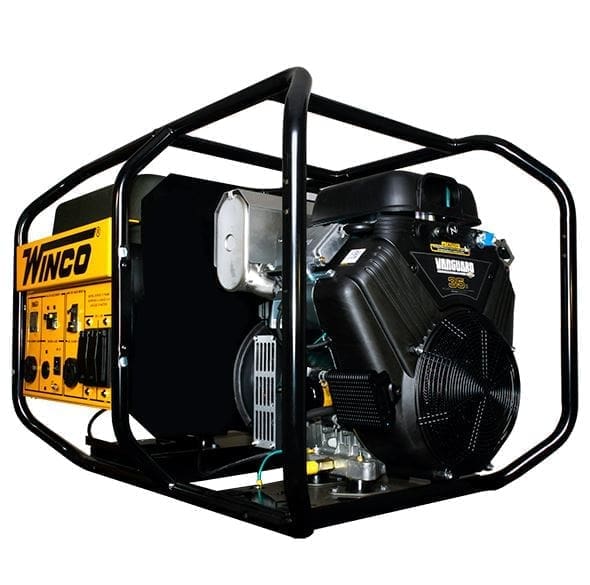

Winco WL22000VE-03/A portable generator with 14-50 receptacle panel front side view

Winco WL22000VE-03/A portable generator with 14-50 receptacle panel side view

Winco WL22000VE-03/C Portable Generator- 22,000 Watts, Vanguard Engine -24022-007

Manufacture part number: 24022-007

SKU: 238041

The WINCO WL22000VE-03/C is the Big Dog of portables: Vanguard 993cc engine, YourGen™ LED meter, and an Anderson full-power 120/240V connector with the 91861-007 plug kit to deliver all available power to a single cord. Rated 22,000 starting watts / 19,000 running watts.

Total Price

Original price was: $8,740.00.Current price is: $7,685.50.

Payments as low as

$2599

*Subject to financing approval

Get started with your rig purchase

Our most powerful WINCO portable, configured for full-power output. The WL22000VE-03/C pairs a 993cc Briggs & Stratton Vanguard V-Twin with WINCO’s industrial alternator and an Anderson full-power 120/240V connector. Use the included 91861-007 plug kit to build your cord and deliver all available kW to your transfer switch or inlet box.

Add These Essentials to Your WL22000VE-03/A

This 03/A model already includes the 14-50 (50A) receptacles on the panel, so extra plug add-ons aren’t required.

Key Features

Vanguard® Engine: Application-engineered power for equipment that works for a living.
Low-Oil Protection: Automatic shutdown helps prevent engine damage.
YourGen™ LED Meter: Hours, RPM, voltage, frequency, load bar & maintenance alerts.
AVR Regulation: Stable voltage as loads change.
Powder-Coated Cradle: 14-gauge welded tubular steel for industrial durability.
Premium Breakers & 100% Load-Testing: Every unit is fully tested at the factory.

Outputs & Receptacles (03/C Full-Power)

Voltage: 120/240V single phase (AVR)
120V: (4) NEMA 5-20 20A (GFCI)
120/240V: (1) CS6369 50A, (1) NEMA L14-30 30A (GFCI)
Full-Power: 120/240V Anderson connector – 120A

Performance & Specs

Starting Watts	22,000
Running Watts	19,000
Running Amps	158.3 @ 120V / 79.2 @ 240V
Voltage Output	120/240V, single phase
Voltage Regulation	AVR (Automatic Voltage Regulator)
Engine Brand	Briggs & Stratton Vanguard
Fuel	Gasoline
Emissions	EPA Prime
Dimensions (Unit)	43″ x 28.85″ x 28.85″
Ship Dimensions (approx.)	44″ x 31″ x 37″
Weight	504 lbs
Warranty	3 Years Commercial
Assembled In	USA

Downloadable PDF’s

WL22000VE- General Parts List

WL22000VE- General Operators Manual (PDF)

WL22000VE- General Spec-Sheet (PDF)

WL22000VE- General Load Balancing Manual (PDF)

WL22000VE- General Tri-Fold Brochure (PDF)

WL22000VE- Vanguard Engine Operators Manual (PDF)

WL22000VE- Vanguard Engine Parts List (PDF)

WL22000VE- Vanguard Engine EPA Certificate (PDF)

WL22000VE- Mecc Alte Operators Manual (PDF)

WL22000VE- Mecc Alte DSR Technical Guide (PDF)

WL22000VE- Battery Spec-Sheet (PDF)

WL22000VE- Dolly Kit Installation Instructions (PDF)

Ideal Uses

Spray foam & coating rigs: Feed full 120/240V output to proportioners, heaters, dryers, and lights via transfer switch/inlet.
Construction & agriculture: Start high-draw motors, welders, compressors, and large tools on remote sites.
Facility backup (temporary): Tie into a manual transfer switch for critical loads during outages.
Events & mobile shops: Reliable power for lighting, HVAC, and equipment where line power isn’t available.

FAQs

What’s the difference between WL22000VE-03/C and /03A?

The /03C includes the Anderson full-power connector and ships with the matching 91861-007 plug kit so you can pull the generator’s full capacity through a single cord. The /03A uses a standard receptacle panel (14-50, L14-30, etc.).

Is the Anderson plug kit included with /03C?

Yes. The WL22000VE-03/C comes with the 91861-007 plug kit in the box so you can build your full-power cord.

What are the rated watts?

22,000 starting watts and 19,000 running watts (120/240V single phase). Use the load bar on the YourGen™ meter to balance loads.

How should I size the cord for the full-power connector?

Use #4 AWG contacts with appropriately sized cable for ampacity and run length. Always follow code and consult a qualified electrician.

Are the 120V outlets GFCI protected?

Yes—(4) NEMA 5-20 120V outlets are GFCI. The panel also includes 120/240V outputs for 30A/50A connections.

What maintenance items fit this unit?

Use the Vanguard 35 HP maintenance kit 16200-011 and the 12V Group 26 battery 80765-013.

Can I use a cover or dolly kit?

Yes—add the Large Storage Cover 64444-013 and the 4-Wheel Dolly Kit 16199-040 for mobility and protection during storage (never cover during operation).
