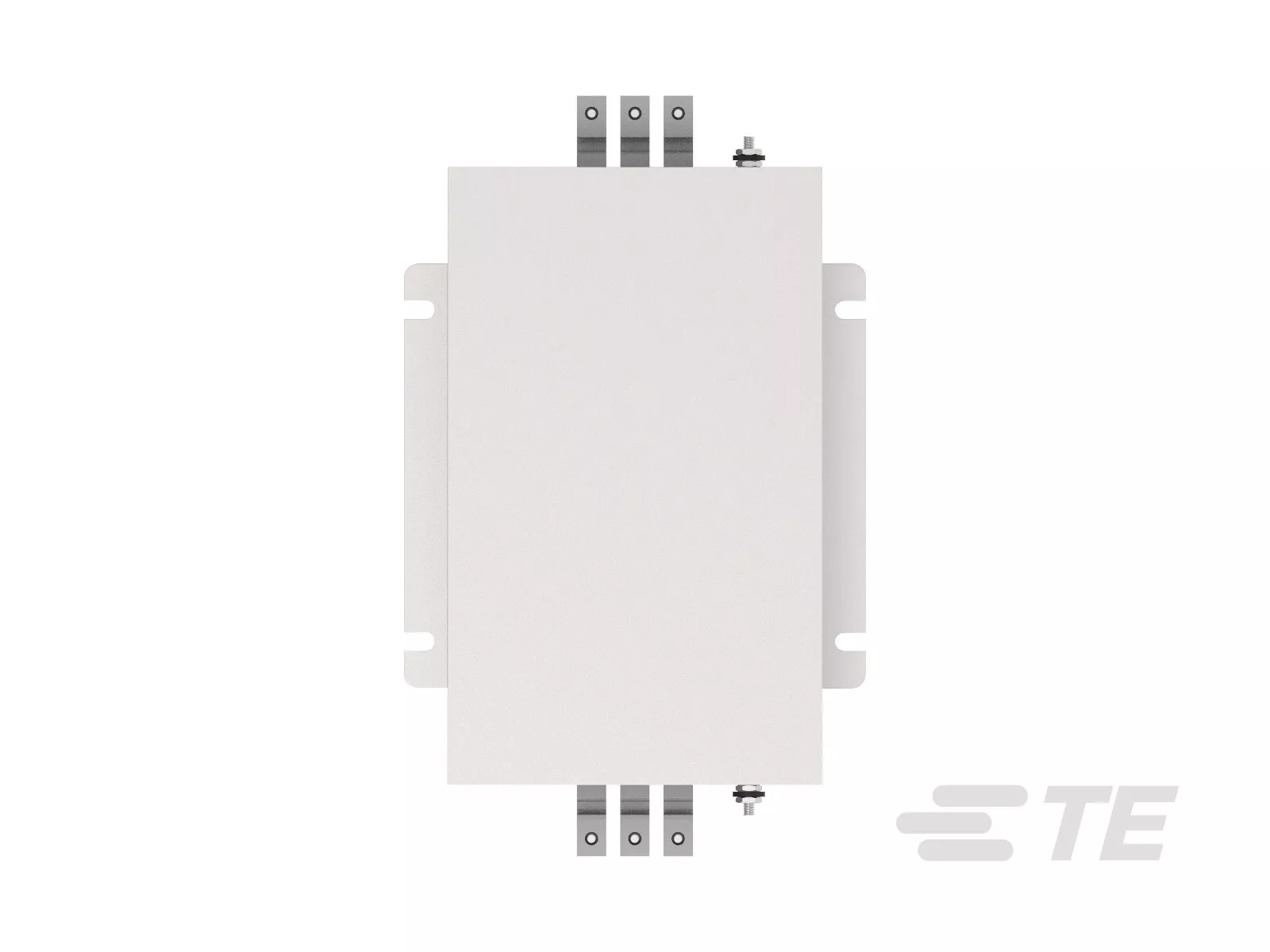

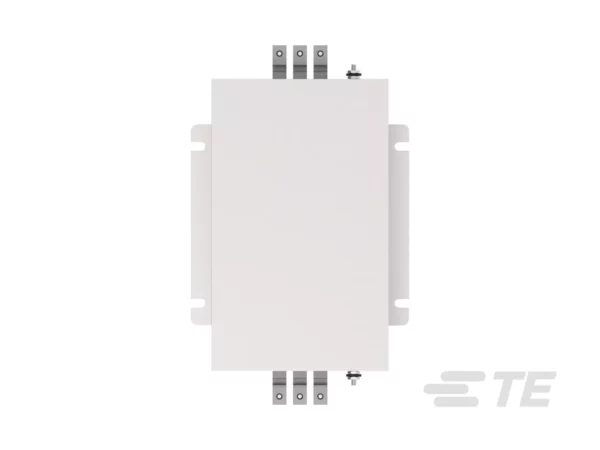

TE Connectivity 50FCD10 3-Phase EMI Filter – Part #50FCD10
Product Overview
The TE Connectivity 50FCD10 is a high-efficiency, 3-phase EMI line filter rated for 50 amps at 480VAC. It delivers superior attenuation of common-mode and differential-mode noise, making it ideal for industrial environments requiring electromagnetic compliance. The filter’s compact, panel-mount design features durable stud terminals and low leakage current, ensuring reliable performance in VFDs, motor drives, and automation control panels.
Key Features
- 50A current handling with 480VAC 3-phase voltage rating
- High EMI attenuation for both common and differential modes
- Stud terminal connections for secure panel integration
- Low leakage current for system compatibility
- UL recognized and VDE approved for international standards
Product Specifications
| Specification | Details |
|---|---|
| Product Type | 3-Phase EMI Line Filter |
| Rated Voltage | 480 VAC |
| Rated Current | 50 A |
| Frequency | 50/60 Hz |
| Leakage Current | <2.5 mA |
| Attenuation Type | Common Mode & Differential Mode |
| Mounting Style | Panel Mount |
| Terminal Type | Stud Terminals |
| Certifications | UL Recognized, VDE Approved |
| Applications | VFDs, Motor Drives, Automation Panels |
