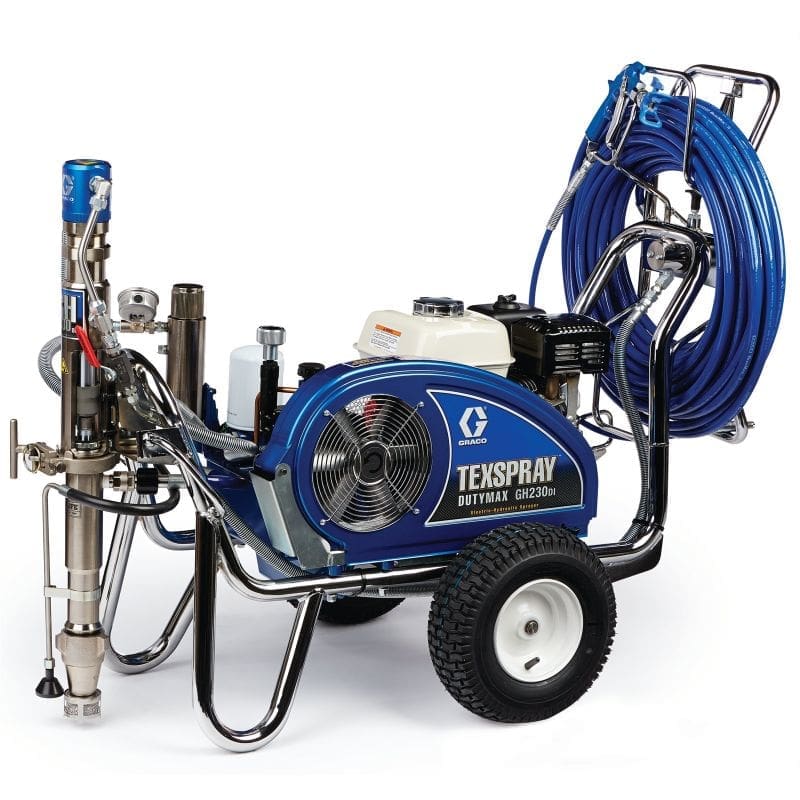

Graco DutyMax GH 230 ProContractor Sprayer 24W962
The Graco DutyMax GH 230 ProContractor Sprayer 24W962 is engineered for contractors who demand maximum productivity when applying fluid-applied air barriers, waterproofing systems, elastomeric coatings, roof coatings, primers, paints, and other high-build materials.
Built around Graco’s proven hydraulic drive system, the GH 230 ProContractor combines durability and performance with advanced productivity features designed to reduce downtime and keep crews spraying.
Graco DutyMax GH 230 ProContractor Sprayer Features
- Hydraulic airless sprayer with 2.35 GPM output
- Maximum tip size of 0.053 in.
- Honda gas engine power
- Endurance Pump with MaxFlo+ Technology
- SmartControl 3.0 with digital display
- WatchDog Pump Protection System
- ProConnect 2 Pump Replacement System
- QuikReel Hose Management System
- FastFlush High-Speed Cleaning System
- Heavy-duty contractor cart with pneumatic tires
Endurance Pump with MaxFlo+ Technology
Graco’s Endurance Pump is designed to provide exceptional durability while handling heavy commercial coatings.
- Long-life ceramic and stainless-steel balls included
- Oversized fluid passages maximize flow
- Reduced pack-out for improved uptime
- Built for demanding commercial applications
SmartControl 3.0 Digital System
The SmartControl 3.0 system provides precise pressure control and consistent spray patterns.
- Digital pressure display
- Job and lifetime gallon tracking
- Diagnostic monitoring
- Consistent spray performance
WatchDog Pump Protection
WatchDog automatically shuts down the sprayer when material runs out, helping protect the pump from costly dry-running damage.
- Reduces pump wear
- Prevents dry-running damage
- Helps extend equipment life
ProConnect 2 Pump Replacement System
Graco’s ProConnect 2 system allows contractors to replace the pump quickly on the jobsite without special tools.
- Minimizes downtime
- Fast pump replacement
- Tool-free design
- Keeps crews productive
QuikReel Hose Management System
The integrated QuikReel system allows hose deployment and retrieval in seconds.
- Reduces hose tangles and kinks
- Faster setup and cleanup
- Improves jobsite organization
- One-person operation
FastFlush Cleaning System
FastFlush helps reduce cleanup time by operating at higher motor speeds during flushing.
- Faster cleanup
- Reduced water usage
- Increased productivity between jobs
Graco DutyMax GH 230 ProContractor Sprayer Applications
- Fluid-Applied Air Barriers
- Waterproofing Membranes
- Vapor Barriers
- Elastomeric Coatings
- Roof Coatings
- Protective Coatings
- Commercial Primers
- Architectural Paints
- Block Fillers
- High-Build Coatings
Technical Specifications
- Maximum Output: 2.35 GPM
- Maximum Tip Size: 0.053 in.
- Maximum Pressure: 3300 PSI
- Power Source: Honda Gas Engine
- Pump Type: Hydraulic Airless
- Series: ProContractor Series
- Manufacturer Part Number: 24W962
The correct air barrier sprayer depends on material viscosity, production requirements, hose length, tip size, and packaging configuration. Spray Foam Systems can help you select the right equipment package for your fluid-applied air barrier or waterproofing application.
What’s Included
- Graco DutyMax GH 230 ProContractor Hydraulic Sprayer
- Heavy-Duty Spray Gun
- BlueMax II Hose Package
- RAC X Tip Guard
- Integrated QuikReel System
- Operator Documentation
FAQs
What is the difference between the GH 230 Standard and ProContractor models?
The ProContractor model adds SmartControl 3.0, WatchDog protection, ProConnect 2 pump replacement, QuikReel hose management, FastFlush cleaning, and additional productivity features.
Can this sprayer apply fluid-applied air barriers?
Yes. The GH 230 ProContractor is commonly used for fluid-applied air barriers, waterproofing membranes, vapor barriers, and other commercial coatings when configured according to the coating manufacturer’s specifications.
Can it spray elastomeric and roof coatings?
Yes. The hydraulic drive system and 2.35 GPM output make it suitable for many heavy-bodied coatings and membranes.
Do you provide training?
Yes. Spray Foam Systems offers hands-on equipment training at our Greensboro, Georgia facility as well as ongoing technical support.
Is bilingual support available?
Yes. We provide Spanish-speaking sales and technical support before and after the sale.
