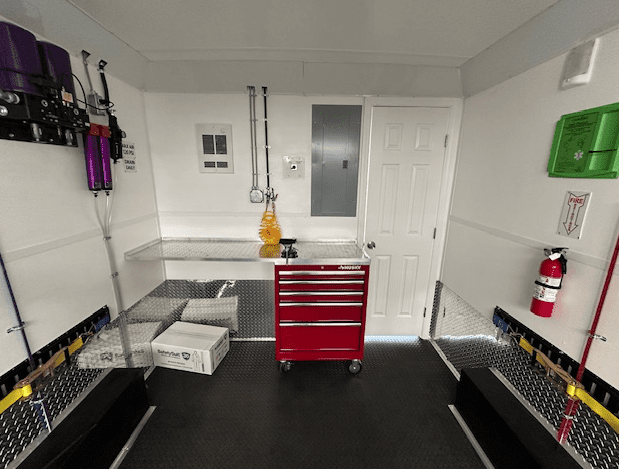

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER BACK VIEW TSUNAMI AIR DRYER AND TOOL AND SAFETY KIT

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER CHEMICAL ROOM SIDE

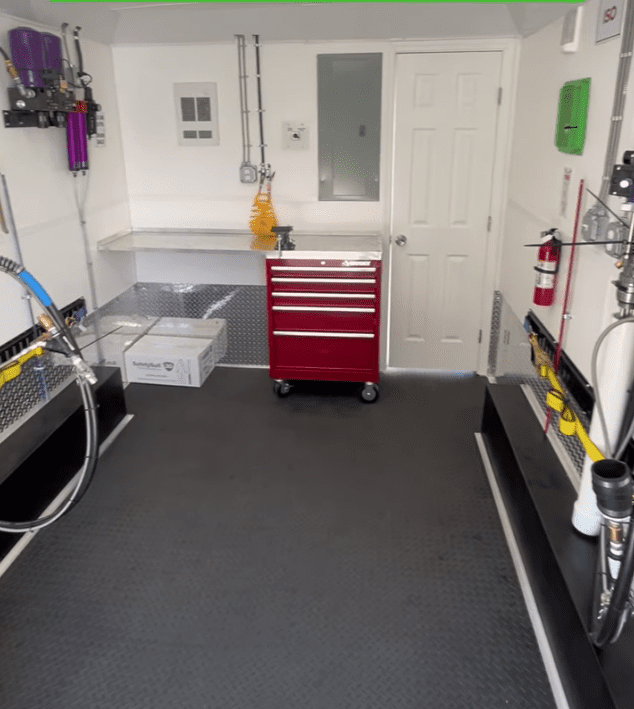

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER CHEMICAL ROOM

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER REACTOR SIDE VIEW

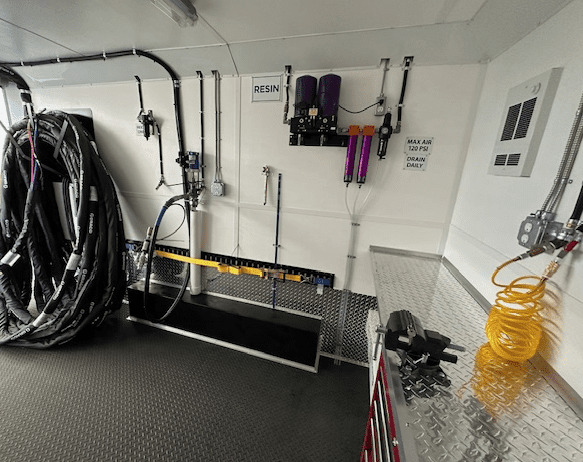

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER HOSE SIDE

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER 40 CFM GENERATOR VIEW

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER 40 CFM GENERATOR ROOM VIEW

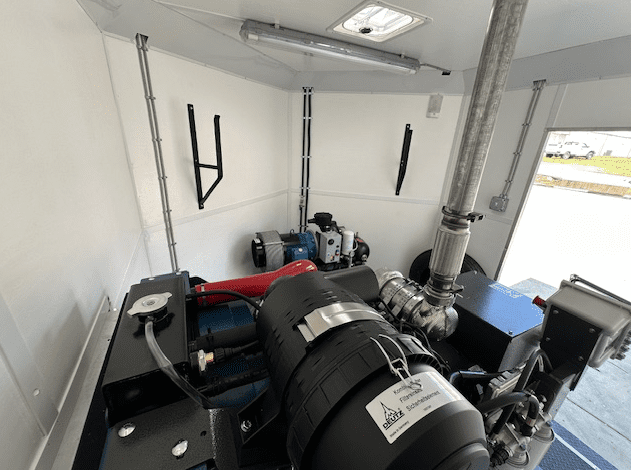

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER 40 CFM GENERATOR ROOM BACK VIEW

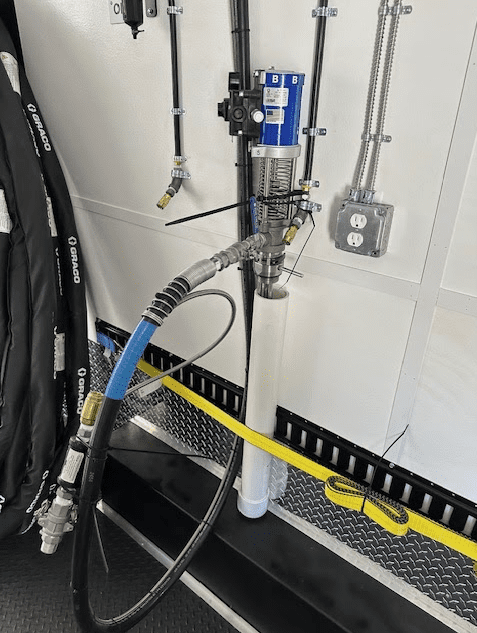

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER B SIDE TRANSFER PUMP

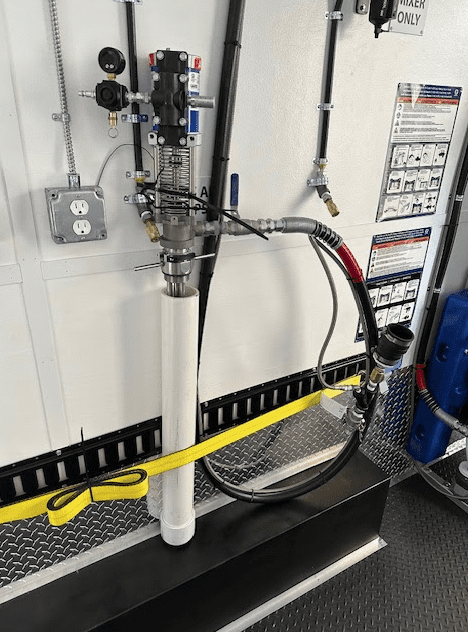

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER A SIDE TRANSFER PUMP

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER 260' HEATED HOSE

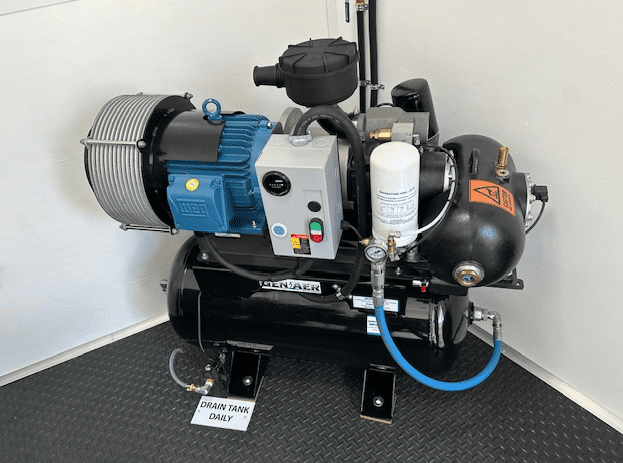

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER 40 CFM COMPRESSOR

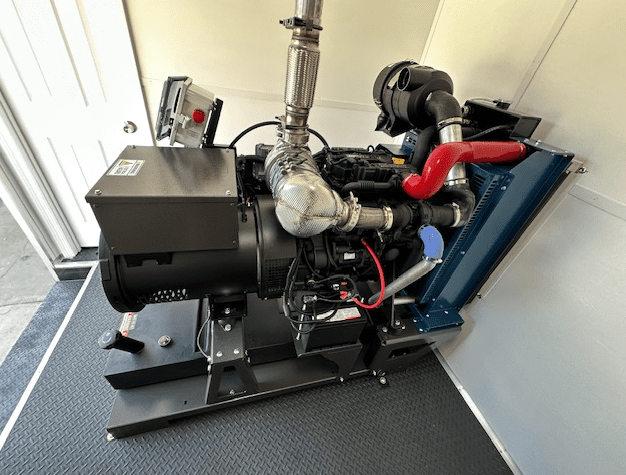

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER 40 CFM GENERATOR FULL VIEW

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER TSUNAMI AIR DRYER

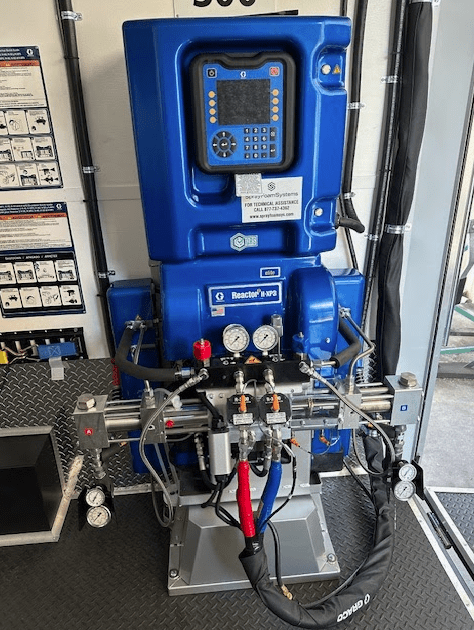

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER GRACO H-XP3

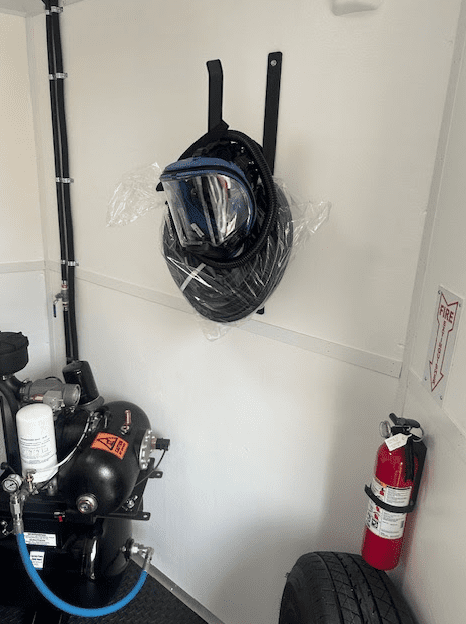

ProPAK XD4 SPRAY FOAM RIG GRACO H-XP3 20' TRAILER FRESH AIR HOSE RACK

ProPAK XD4D H-XP3 20′ Diesel Trailer – Protective Coating Rig

Manufacture part number: 350362

SKU: 346996

The ProPAK XD4 Spray Foam Rig is built for high-output jobs — featuring a Graco H-XP3 Elite Reactor, 20′ insulated trailer with 14,000 lb GVWR, 40kW diesel generator, and 40 CFM air compressor. Ideal for spray foam, polyurea, protective coatings, and more.

Total Price

$150,221.75

Payments as low as

$2599

*Subject to financing approval

Get started with your rig purchase

The ProPAK XD4 Spray Foam Rig by Spray Foam Systems is a premium, diesel-powered mobile rig designed to tackle even the most demanding protective coating and spray foam insulation projects. Built inside a 20′ V-nose trailer with 14,000 lb GVWR, this rig comes equipped with a Graco H-XP3 Elite Reactor, high-output power systems, and a full set of safety tools — ready to perform across residential, commercial, and roofing applications. With interior storage for up to three full sets of A & B chemical drums (spray foam or polyurea), the ProPAK XD4 is engineered for extended jobs and maximum material capacity on-site.

Watch the ProPAK XD4 Rig in Action: See how this high-performance rig is built for serious spray foam and polyurea applications.

Need Help Finding the Right Spray Foam Rig?

Explore these resources to help you make the best choice for your spray foam projects and goals.

Built for Maximum Output and Application Flexibility

Ideal for Spray Foam Insulation, Polyurea, Protective Coatings, Roofing, Concrete Lifting & Retro Injection
Rugged, diesel-powered mobile rig with industrial-grade systems
Includes high-performance Tsunami air dryer & desiccant filtration for clean, dry air
Hydraulic proportioner capable of applying up to 2.8 gal (10.6 L) per minute for high-volume coating applications

Key Components & Features

Graco H-XP3 Elite Reactor 2– 3500 PSI, 20kW heaters, 250′ Xtreme-Wrap heated hose + 10′ whip (expandable to 420′)
Trailer – 8.5′ x 20′ V-nose, 14,000 GVWR, back ramp door, wall heater, roof-mounted AC
Interior – Closed-cell insulated walls & ceiling, rubber diamond plate flooring, gloss white wall/ceiling finish, E-track barrel bracing
Power & Air – 40kW diesel generator + 40 CFM rotary screw compressor
Spray Gun – Graco Fusion FX gun with Xtreme-Wrap whip
Material Handling – Stainless steel T3 transfer pumps, drum heating blankets, high-viscosity agitator
Air Dryer– Pure-10 Tsunami air dryer with desiccant cartridge
(2) 55-Gallon Drum Heating Blankets – With adjustable temperature controllers to maintain optimal chemical viscosity in cold or fluctuating environment

Tool & Safety Kit Included

(2) Half-mask respirators with cartridges
(2) Advanz safety goggles
(25) Hood & boot suits
(1) Fire extinguisher, (1) First aid kit, (1) Eye wash station
(1) Pro dispenser gun + (1) Fireblock & window/door foam
Nonsparking bung wrench, adjustable wrenches, channel locks

Applications

✔ Spray Foam Insulation (Open & Closed Cell)
✔ Polyurea Protective Coatings
✔ Concrete Lifting & Void Filling
✔ Roofing Systems
✔ Retro Injection Foam

Backed by Spray Foam Systems’ training and tech support, this rig is built for performance, durability, and ease of use. Contact us to learn more or schedule a demo.

Learn more about our training programs or explore financing options today.

💡 Key Features:

20’ ProPAK XD4 Insulated V-Nose Trailer (14,000 lb GVWR)
Graco H-XP3 Elite Reactor with 20kW heaters
250′ Xtreme-Wrap Heated Hose + 10′ Whip (Expandable to 420′)
Fusion FX Spray Foam Gun
Stainless Steel T3 Transfer Pumps & High Viscosity Agitator
40kW Diesel Generator + 40 CFM Rotary Screw Compressor
Pure-10 Tsunami Air Dryer + Desiccant Dryer
Full PPE, Tools & Safety Kit Included
Ideal for Polyurea, Spray Foam, Coatings & Concrete Lifting
E-Track Barrel Bracing, Work Bench, Spray & Fresh Air Hose Racks

Downloadable

FAQ Section

What applications is the ProPAK XD4 rig designed for?
This rig is built for spray foam insulation, protective polyurea coatings, concrete lifting, retro injection, and roofing insulation — making it highly versatile for contractors.

How long is the heated hose?
The included heated hose is 250 feet with a 10-foot whip, and can be expanded up to 420 feet for large-scale projects.

Does the ProPAK XD4 come with safety equipment?
Yes, it includes a complete safety and tool kit with PPE gear, respirators, suits, goggles, first aid, and more — all ready for jobsite compliance.

Is the rig climate controlled?
Yes. It features a roof-mounted A/C, wall heater, and drum heating blankets to maintain optimal spraying conditions year-round.

Do you offer training or tech support?
Absolutely. Training is available at our Georgia facility or on-site, and we offer 24/7 technical support for all rig owners.

Weight

6500 lbs

Dimensions

102 X .240

X .102 in

Free Shipping

0 Brand

SFS ProPAK

ASIN

Display in product feed (1 = Yes; 0 = No)

1




      Trustindex verifies that the original source of the review is Google. I would have to say after buying a few rigs from them whenever I try to reach my reps Hannah or Savannah they answer almost every single time or call me back in minutes. The techs are hard sometimes to get ahold of but when I call the girls they get me the help I need asap. I get all experiences aren’t the same but they have been nothing but great for me. I ask for help, I get it I call for part, it’s sent out and delivered That’s all I think most people would ask for.

  Posted on Google


   Jason Smegal




     Trustindex verifies that the original source of the review is Google. Thanks for the awesomely fast hookup. The power blankets are a game changer!

  Posted on Google


   42 racing




     Trustindex verifies that the original source of the review is Google. Amazing place great people great vibes. Amazing training highly recommend anyone that's planning on getting into the industry going to them. Jamie is amazing trainer along with everyone else all the way down to the owner. You can call at any time and even if they can't answer they always call back. Hoping to grow in this industry and would love to always be a part of it with him. Highly recommend asking for Jamie.. Also I am adding on to this post. I want to notate that even on days that Jamie isn't working. He always is available to help me. he stays on the phone is limited amounts of time to help out with the calls. Walk you through every step. No matter what the issue no matter what the problem is he happens to always find a solution. Highly recommend. Was stuck on a huge problem with a very big job. He was off and help me hours every step of the way and solve the problem. thank you and thank you all for everything else he is absolutely a value in this industry. Will always be my go-to if any trouble comes up. And any education moment.

  Posted on Google


   darius brown




     Trustindex verifies that the original source of the review is Google. I was having trouble finding specific parts I needed. Contacted a lovely woman named natasha and within minutes she had the website updated and the exact parts I needed, ready to order. Very helpful.

  Posted on Google


   Aaron Sickau




     Trustindex verifies that the original source of the review is Google. So very impressed. Amazing attention to detail. Amazing RIG. Thank you to everyone there!!!

  Posted on Google


   Rebekah D. - ENERGY Insulation, Inc.




     Trustindex verifies that the original source of the review is Google. There's no other company better with customer service. We have been buying parts and supplies from Spray systems for over 5 years. We have a  specialized compressor on our rig that went bad and couldn't find the model  anywhere in stock. Not only did Spray Foam Systems, Natasha and Collin have it in stock they assisted getting it to me that day 800 miles from their shop. They got on the phones and arranged transportation and we installed it the next morning. We always book up during the summer and Spray foam systems saved us. We  would advise anyone when buying a spray foam rig or just buying parts to consider the most important detail there is, "CUSTOMER SERVICE". Without it the Rig isn't worth a penny. Nevertheless if you are considering doing business with any company in the industry Spray Foam Systems take's their business seriously. Thank you Natasha and Collin.

  Posted on Google


   Monica Bosh




     Trustindex verifies that the original source of the review is Google. Matt Chittick from Spray foam systems has helped us with customer service numerous times. He always answers his phone and is there to help. I have been in the spray foam business for many years and whenever we call customer service they are always there to help. I would recommend to anyone who is looking to get into the spray foam business to call Matt Chittick. He has a wealth of information and can walk you through any troubleshooting questions you may have. To me it's not about the cheapest price it's about the service to back it up year after year. Thank you Matt again for your remarkable customer service.

  Posted on Google


   Monica Bosh

XD4series_web

Download

Make a smart investment.

Still have questions?

Video Resources

Graco Reactor 3 - Spray Foam Systems ProPAK 300 Spray Rig

Graco Mobile Spray Foam and Polyurea Rigs

ProPak 200 Slider Spray Foam Rig

Frequently Asked Questions

What is spray foam insulation?

Spray Polyurethane Foam (SPF) is a spray applied plastic that provides insulation while providing an air and moisture barrier for roofs, attics, crawlspaces, walls and basements. Spray Foam is a two-component foam that includes an “A” side of isocyanate and a “B” side of Resin and when combined creates a chemical reaction to make foam. After the chemicals are mixed by a trained professional, the foam is dispensed through professional equipment at high heat as a liquid and expands as it sprayed on to a substrate filling any cracks, gaps and voids. Spray Foam Insulation comes in the form of open and closed cell foams. Open cell foam is a light density half pound foam, that can expand up to 100 times when sprayed and has a sponge like texture. Most open cell foam applications are used in the interior of buildings and provide noise-reduction. Closed cell foam is a medium to high density 2 pound foam that is air and water impermeable. Closed cell foam is used for interior building applications, exterior building applications lifting and has a ridged like texture.

What equipment do you need to run a spray foam insulation rig?

A power source (generator or shore power), a proportioner, a compressor, an air dryer, transfer pumps, a hose and guns. These are main components, but further customizations are available, and our sales representatives will help you find the best equipment for your spraying needs.

Do the spray foam insulation rigs come with a warranty?

The warranty on a spray foam insulation rig varies by manufacture. The typical warranty is one year on all components.

What is the average cost of spray foam insulation rig?

The total average cost, including all necessary components is around $100k. Spray Foam Systems makes low-cost options like our cart setups or our mobile spray rigs that average between $50 – $80k.

Is there financing available for spray foam insulation rigs?

Yes. We have multiple lenders that offer financing. Financing options and requirements to finance vary by company, however, many lenders have 0% interest available. Submit a financing information request and a member of our team will be happy to assist you!
