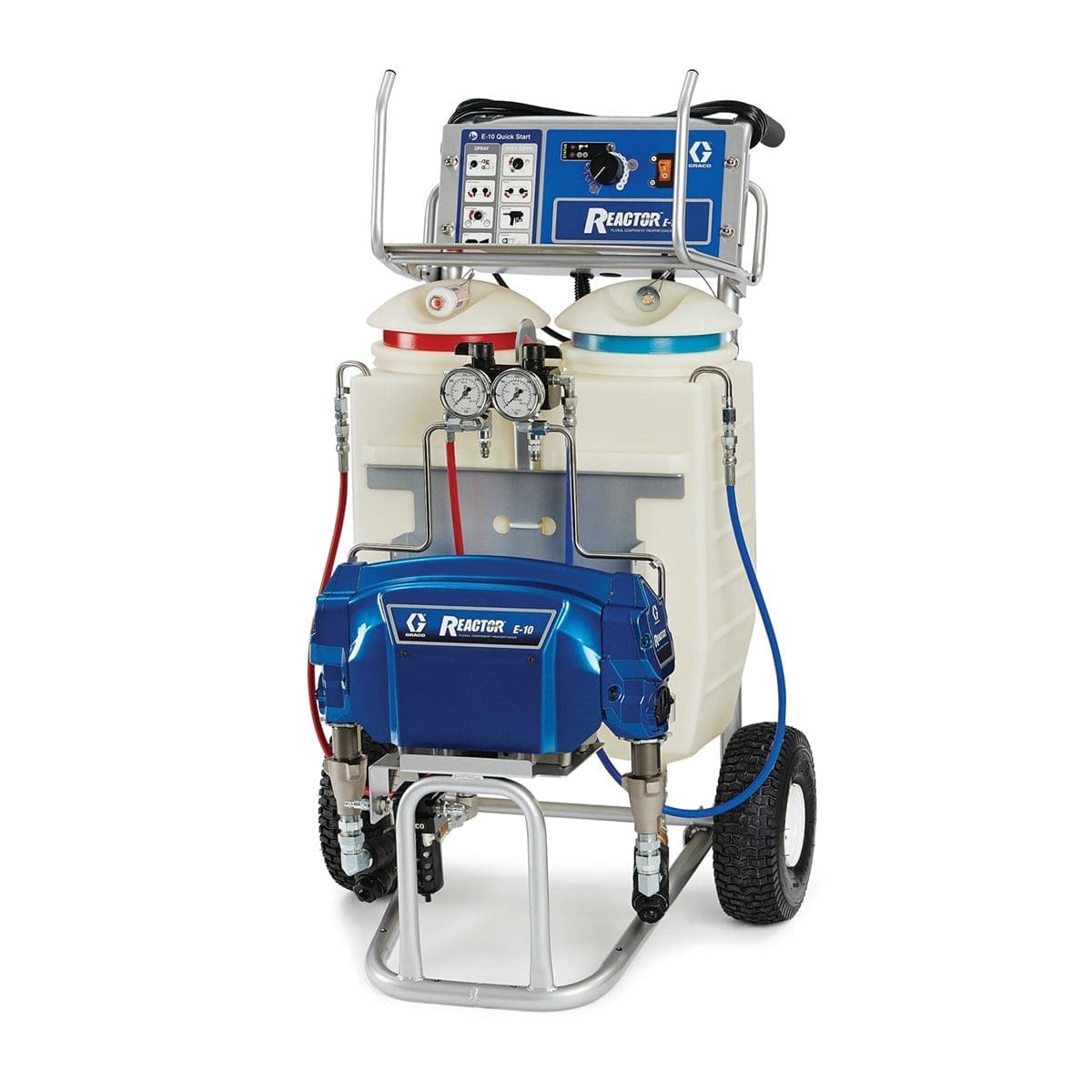

Graco Reactor E-10 Proportioner Package – 120V, 1PH (Part #ES9570)
Product Overview
The Graco Reactor E-10 (Part #ES9570) is a compact, electric-powered proportioner designed for small-scale spray foam and polyurea applications. Operating on a 120V, 15A circuit, it delivers up to 12 lb/min (5.4 kg/min) of material, making it ideal for projects such as joint fill, touch-ups, and residential insulation tasks.
Equipped with user-friendly controls, including a single-knob operation and digital temperature display, the E-10 ensures ease of use and efficient performance. Its portability and quick setup capabilities make it a valuable addition to any contractor’s equipment lineup.
Key Features
Compact and Portable Design
- Lightweight and easy to maneuver, perfect for tight spaces and remote job sites.
- Two-wheel cart design facilitates transportation and setup.
Efficient Operation
- Operates on a standard 120V, 15A circuit for maximum convenience.
- Pressure balance valves ensure consistent spray patterns by eliminating pressure fluctuations.
User-Friendly Controls
- Single-knob operation with digital temperature display simplifies setup and monitoring.
- Intuitive start/stop functions enhance user experience and reduce training time.
Cost-Effective Performance
- One-person operation reduces labor costs and increases productivity.
- Material savings of up to 30% compared to disposable foam systems.
Product Specifications
| Specification | Details |
|---|---|
| Power Source | Electric |
| Voltage | 120V, 1PH |
| Amperage | 15A |
| Maximum Working Pressure | 2000 psi (13.8 MPa) |
| Maximum Flow Rate | 12 lb/min (5.4 kg/min) |
| Maximum Fluid Temperature | 160°F (71°C) |
| Maximum Hose Length | 35 ft (10.7 m) |
| Mix Ratio | 1:1 Fixed |
| Compatible Materials | Polyurethane Foam, Polyurea, Adhesives, Caulks |
| Tank Capacity | 7 gallons (26.5 liters) per component |
| Air Inlet Size | 1/4 in Quick-Disconnect Pin |
| Air Outlet Size | 1/4 in NPSM |
| Sound Pressure Level | 84.5 dB(A) |
| Included Components | Proportioner, Unheated Hose |
