Graco MARK SPRAYER,IV XT,PRO,NA, 19F551

Graco MARK SPRAYER,IV XT,PRO,NA, 19F551

Manufacture part number: 19F551

SKU: 323013

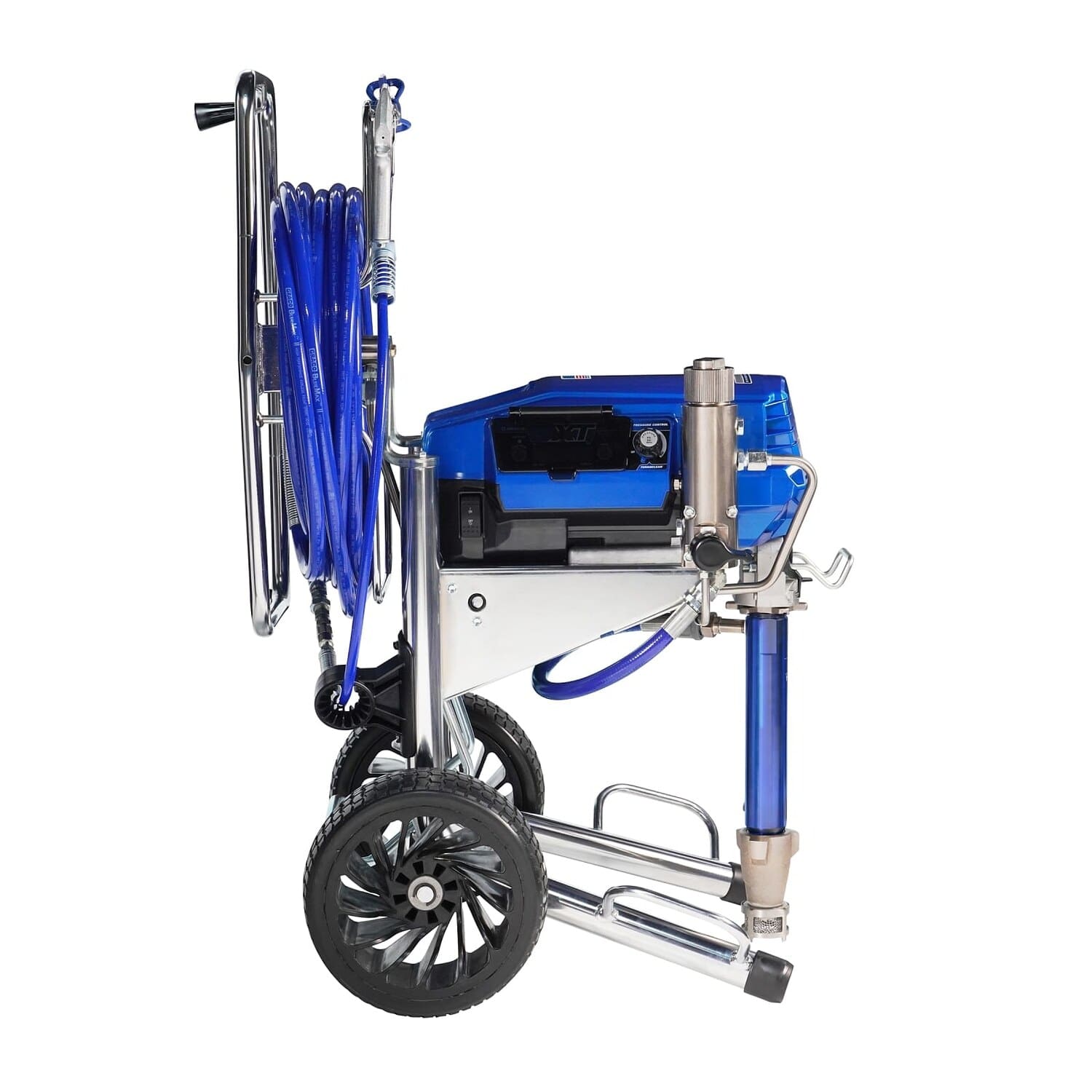

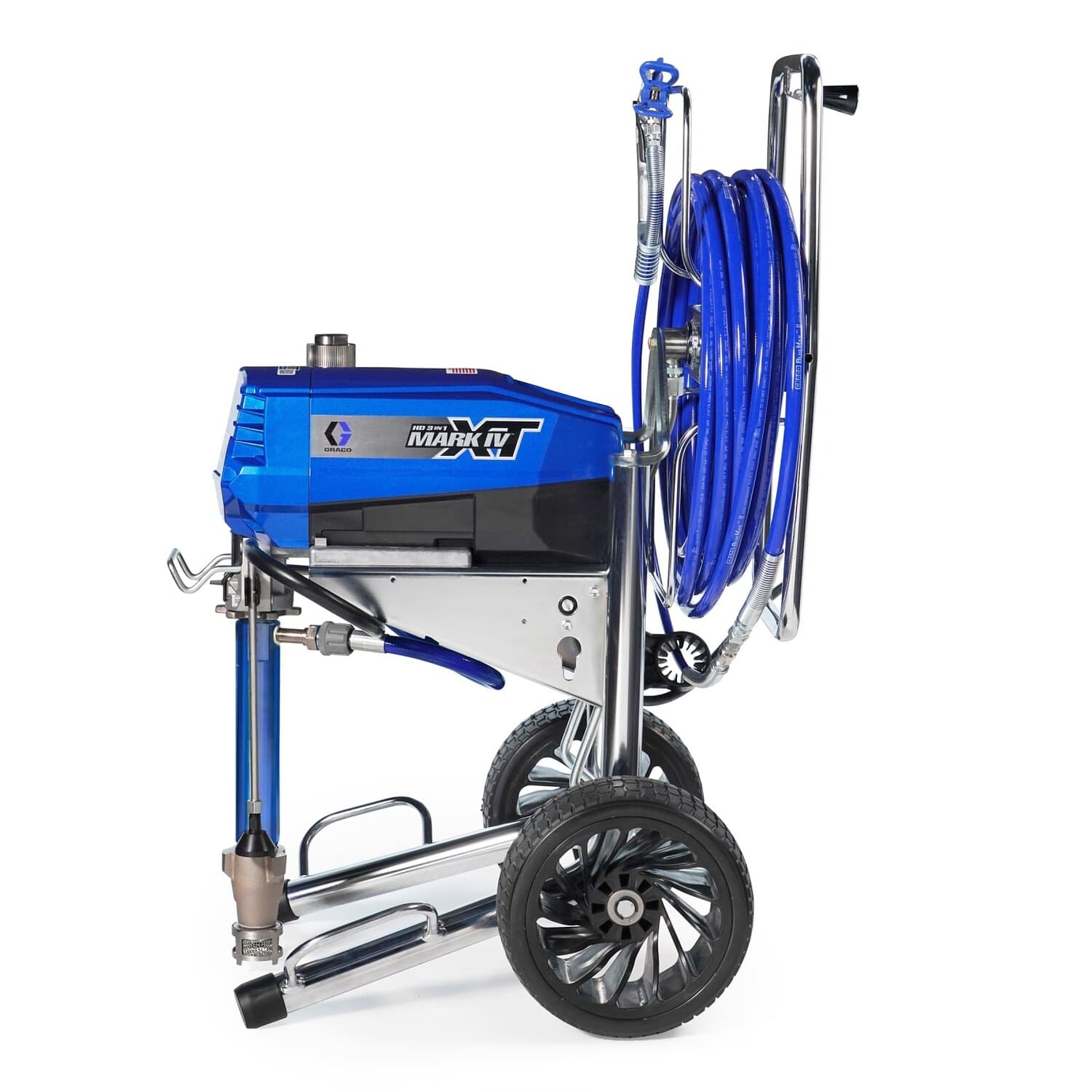

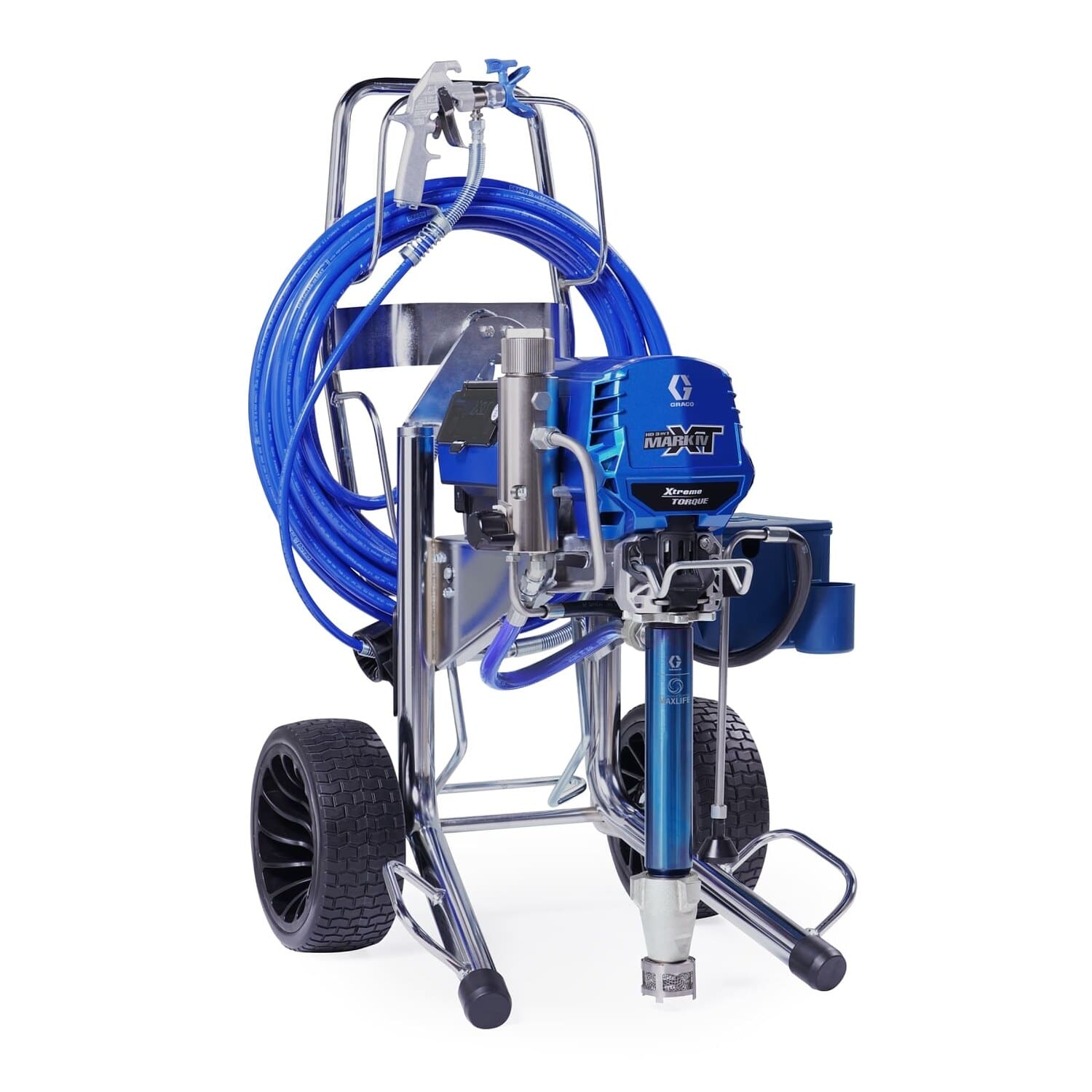

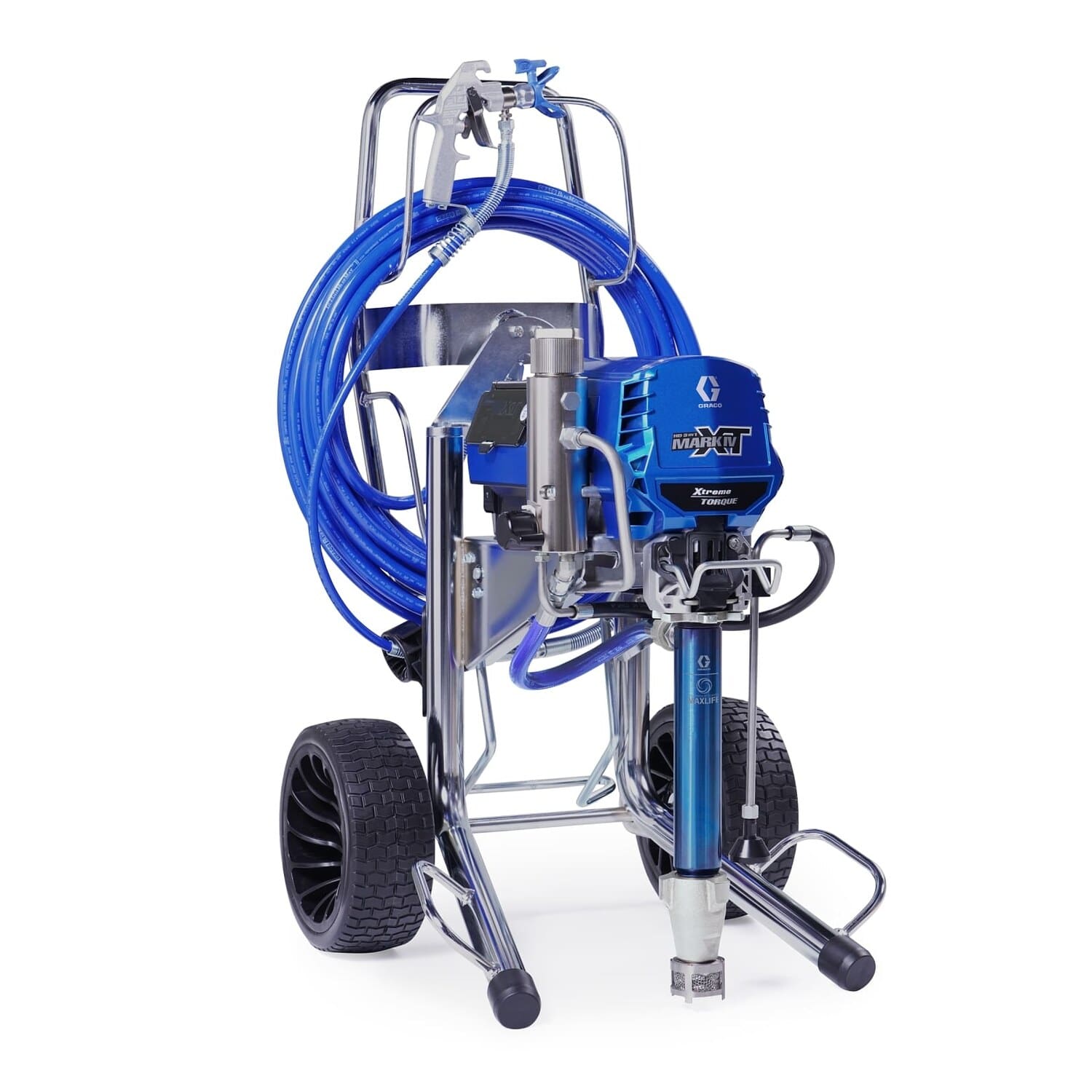

Graco Mark IV XT HD 3-in-1 ProContractor Series Electric Airless Sprayer, Hi-Boy

Total Price

$10,470.00

Payments as low as

$2599

*Subject to financing approval

Get started with your rig purchase

Graco Mark IV XT HD 3-in-1 ProContractor Series Electric Airless Sprayer, Hi-Boy

Mark IV XT HD 3-in-1 ProContractor Series Electric Airless Sprayer, Hi-Boy

The Mark IV XT ProContractor Series delivers an airless spray experience like no other. Featuring a 2.3 HP Xtreme Torque motor, Next Generation Rapid-Response Pressure Control, and an Endurance Vortex MAXLIFE pump, the Mark IV XT ProContractor is guaranteed to last!

Features

Xtreme Production & Reliability. XT ProContractor Series electric airless sprayers are built specifically for professional contractors looking to increase production on the industry’s most silent spraying platform. Complete with numerous time saving features and the industry’s longest life pumps, an XT ProContractor will keep you out of the shop, and on the job.

  • Xtreme Torque Motor Technology
    • 15X more torque than traditional motors
    • 8X more magnets provide unmatched power and performance
    • 90% lower running speeds extend motors life
    • Up to 10X quieter
  • Rapid-Response Pressure Control
    • Instantly responds to deliver the best finish quality
    • More performance across its full tip size range
    • Industry’s largest operating pressure range (50-3,300 psi)
  • Selectable Performance Modes
    • Two selectable spray modes offer unique performance levels to boost efficiency on every job
    • Bring on the savings and achieve Xtreme Control with Low Pressure Mode (50 – 2,000 psi)
    • Use High Pressure Mode for Xtreme Performance (500 – 3,300 psi)
  • Easy-to-Read LED Digital Display
    • Visible in even the toughest spraying conditions
  • Endurance Vortex MAXLIFE Piston Pump with ProConnect
    • Endurance Vortex MAXLIFE Rod lasts 6X longer than the closest competitor
    • ProConnect Pump Removal for fast on-the-job service
    • 25% longer pump stroke for longer life before repacking
  • QuikReel Hose Management System
    • Easy hose management
    • Deploy and rewind up to 300 feet (90 meters) of hose in seconds
    • No twisting, kinking, and coiling
    • Use only the hose you need — the rest stays on the reel
  • TurboClean Cleaning System
    • Industry’s fastest pump cleaning system
    • Delivers 3X faster cleaning with 1/2 the water
    • Convenient location
  • BlueLink Job & Sprayer Management System
    • Streamline your business
    • Track every sprayer: Exact location & hourly productivity
    • Know job progress: On demand productivity facts and reporting from anywhere
    • Maximize uptime: Set maintenance schedules, alerts, & jobsite notes
  • WatchDog Pump Protection
    • Prevents damage by shutting off pump when it’s time to refill
  • Additional Feature:
    • CrushProof Inlet Strainer
    • FlatProof Tires
    • Flex Plus Gun & RAC X LTX SwitchTip



Weight

Dimensions

Free Shipping

0

Brand

Graco

ASIN

Display in product feed (1 = Yes; 0 = No)

1

Make a smart investment.

Still have questions?

Video Resources

Graco Reactor 3 - Spray Foam Systems ProPAK 300 Spray Rig

Graco Mobile Spray Foam and Polyurea Rigs

ProPak 200 Slider Spray Foam Rig

Frequently Asked Questions

What is spray foam insulation?

Spray Polyurethane Foam (SPF) is a spray applied plastic that provides insulation while providing an air and moisture barrier for roofs, attics, crawlspaces, walls and basements. Spray Foam is a two-component foam that includes an “A” side of isocyanate and a “B” side of Resin and when combined creates a chemical reaction to make foam. After the chemicals are mixed by a trained professional, the foam is dispensed through professional equipment at high heat as a liquid and expands as it sprayed on to a substrate filling any cracks, gaps and voids. Spray Foam Insulation comes in the form of open and closed cell foams. Open cell foam is a light density half pound foam, that can expand up to 100 times when sprayed and has a sponge like texture. Most open cell foam applications are used in the interior of buildings and provide noise-reduction. Closed cell foam is a medium to high density 2 pound foam that is air and water impermeable. Closed cell foam is used for interior building applications, exterior building applications lifting and has a ridged like texture.

A power source (generator or shore power), a proportioner, a compressor, an air dryer, transfer pumps, a hose and guns. These are main components, but further customizations are available, and our sales representatives will help you find the best equipment for your spraying needs.

The warranty on a spray foam insulation rig varies by manufacture. The typical warranty is one year on all components.

The total average cost, including all necessary components is around $100k. Spray Foam Systems makes low-cost options like our cart setups or our mobile spray rigs that average between $50 – $80k.

Yes. We have multiple lenders that offer financing. Financing options and requirements to finance vary by company, however, many lenders have 0% interest available. Submit a financing information request and a member of our team will be happy to assist you!
