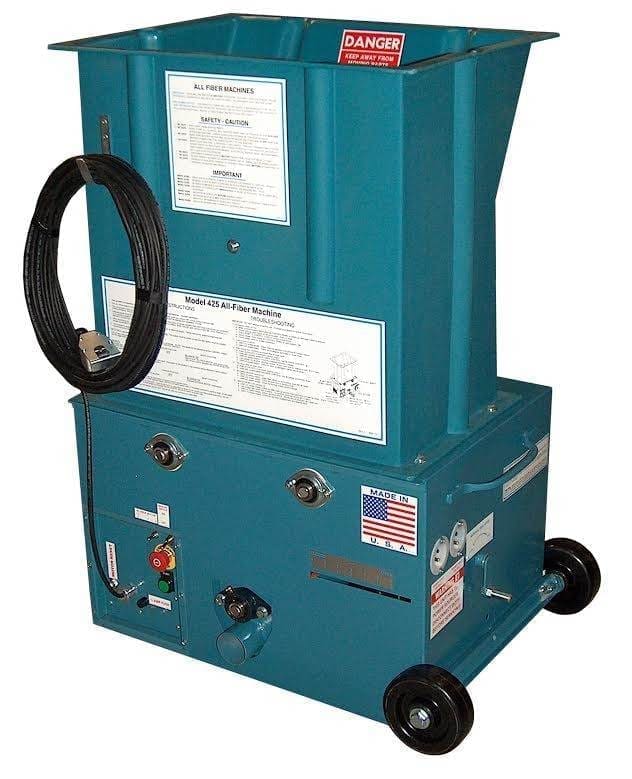

Krendl 425 All Fiber Blowing Insulation Machine SFS425
Package Includes:
- (1) 425-B #425 14 Amp Insulation Blower
- (2) H318 2.5” Flexhaust Hose x 50′
- (1) 379 2.5” Steel Connector Tube
- (3) 339A 2.5” Hose Clamps
Model 425 All Fiber Airlock Unit
- Style: Airlock
- Material: All Fiber
- Production Rate: 1,200 lbs/hr 545 kg/hr
- Hopper Capacity: 7 cu. ft./ .20m3
The 425 is a proven leader in the do-it-yourself rental market. Designed for low maintenance, rugged performance and portability, the 425 provides a large hopper capacity with user friendly controls.
MATERIAL PRODUCTION RATE:
lbs/hr (kg/hr) rating with 100ft. (30.5m.) of 2 1/2″ (6.4cm.) hose at 10ft. (3.1cm.) elevation
| w/single 8amp 2-stage blower | w/single 14 amp 2-stage blower | |
| Material | lbs/hr – kg/hr | lbs/hr – kg/hr |
| CELLULOSE | 1100 / 499 | 1200 / 545 |
| MINERAL FIBER | 600 / 272 | 800 / 363 |
| FIBERGLASS | 200 / 91 | 300 / 136 |
Product density and variable blowing conditions will affect production rate. One 2-stage, 14 amp blower recommended for maximum performance.
- Weight: 220 lbs. (100 kg.)
- Dimensions: 36″W X 21″D X 44″H (91cm. W X 53cm. D X 112cm. H)
- Power Requirements: double input, 15amps each/120volt/60hz w/ 14amp blower single input, 15amp/120volt/60hz w/ 8amp blower
- Hopper Capacity: 7 cu. ft./ .20m3
- Airlock: 14″ x 8″ diameter (35.6cm. x 20.3cm. diameter) 2 1/2″ (6.4cm.) outlet for blowing hose
- Blowers Sizes: 8 amp/2-stage (120volt) 14 amp/2-stage (120volt)
Additional Information:
Features and benefits
- Recessed on/off switch provides safety and protection of electrical components
- Safety guards and hopper bars provide operator safety
- Modular component design for quick disassembly/reassembly for easy troubleshooting and maintenance
- Slide out airlock for easy maintenance and replacement of seals.
- Removeable hopper for quick and easy access to the airlock
- Dual (2) agitators that enhance the conditioning of fibers
- 1/2 hp Totally Enclosed Fan Cooled Gear Motor (470 in/lb torque) for long life
- Extra heavy, nickel plated #40 chain with hardened steel sprockets provides a corrosion/abrasion resistant drive system
- Improved blower filter design for less filter maintenance
- 100 ft. (30.5) hardwired remote control cord and single on/off switch provide easy on or off operation of feed and blower
- 10 amp thermal overload protection for agitator motor for complete protection of the material feed motor
- 1/2 amp glass fuse protection for transformer provide properly sized fuse protection on the 1 amp transformer
- 120volt/60Hz S.I. w/2-stage 8 amp blower OR 120volt/60Hz D.I. w/2-stage 14 amp blower are user friendly for hooking up to a single or a double 15 amp line power
