Graco SYSTEM,XP50S,3:1,290/97,NON-HAZ

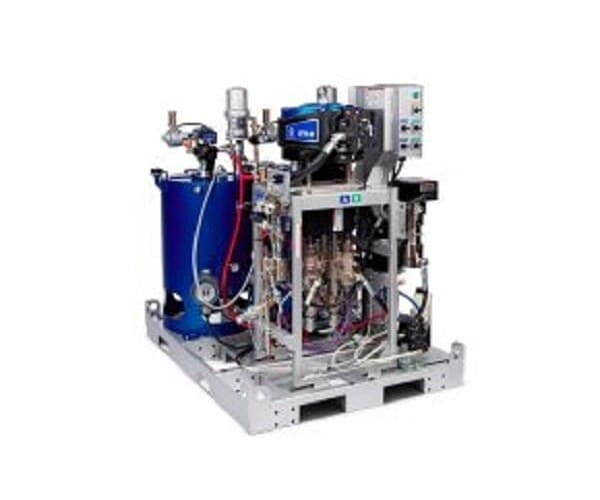

Skid Based Solutions for the Highest Demand Applications
The XPs-hf systems combine the XP™ Sprayers with the powerful XL 10000™ air motor. The XPs-hf Systems help to reduce waste, speed up cure times and improve mix ratio. With the durable, agitated heated tanks, your coatings will obtain the best conditioning to meet the highest demand applications – making you more productive.
- XP50s-hf, 5000 psi (345 bar) max working pressure and approximately 4 gpm (15 lpm) @ 40 cycles/min
- XL 10000 motor, a powerful air motor with quieter operation and low icing;
- Viscon HF Fluid Heater and Xtreme-Wrap Heated Hose Kit for improved flow and fast heat-up times;
- Xtreme-style XP Pump Lowers, with two metering pumps instead of three, allowing for faster and easier set up, use and repair; and
- SST Heated Tank, featuring double-walled construction, 25 gallons of capacity and 3000-Watt heaters that quickly condition high viscosity coatings.
All XP skid units include the following: (2) 25 gallon heated hoppers with 3000W immersion heaters, (2) 5:1 Monark feed pumps with feed hose and wye strainer A and B proportioner inlets, (2) Xtreme-Duty agitators for A and B tanks, (1) Solvent flush pump, (2) 5400 W Viscon HF primary fluid heaters for A and B materials, 5-zone wiring junction box with on/off switches for each heat zone, Mix manifold with static mixer and 35 ft. (10.7 m) of spray line
and XTR spray gun with 519 tip, insulated handle and 4-finger trigger. All units are rated for non-hazardous locations.
Manufacturer Part Number: 578302
