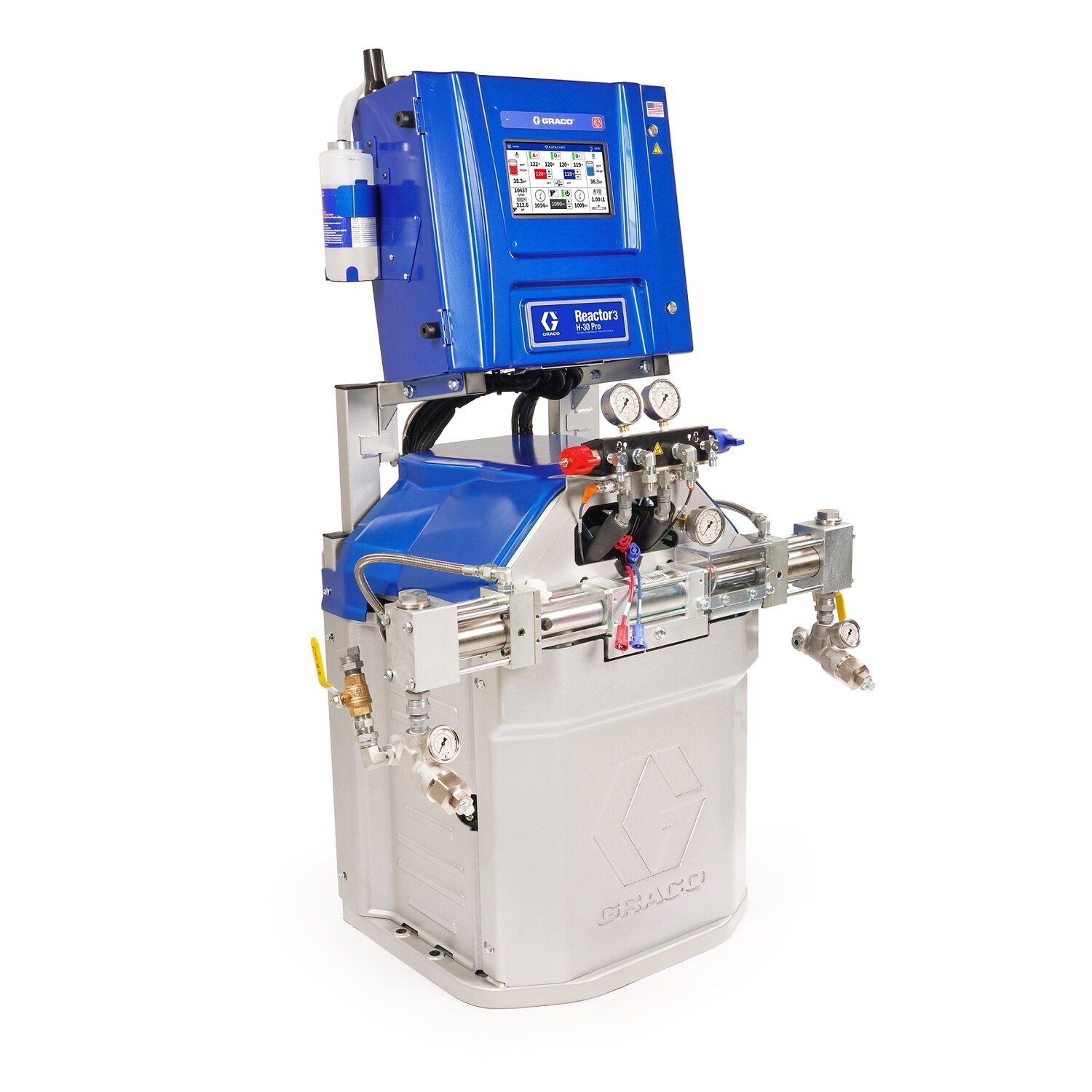

Graco Reactor 3 H-30 Pro Tier Proportioner Package – Part #IHR355
Product Overview
The Graco Reactor 3 H-30 Pro Tier is engineered for high-output spray foam applications that demand precision, reliability, and control. Whether you’re working in residential, commercial, or in-plant OEM environments, this hydraulic proportioner ensures optimal performance across the board.
Featuring a 30 lb/min maximum flow rate at 2000 psi, the H-30 Pro is equipped with a 15 kW hybrid heating system that efficiently maintains fluid temperature under load. With 200 ft of internal heated hose and a 20 ft Xcelerator whip hose included, you’re ready for extended reach and uninterrupted spray consistency.
Moreover, the system integrates Graco’s Advanced Display Module (ADM), enabling intuitive touchscreen operation and diagnostics. GPS-enabled Reactor Connect provides real-time remote access, empowering contractors to monitor and adjust system settings from anywhere. With these advanced features, productivity and quality control are always within reach.
Key Features
High-Performance Output
- Delivers up to 30 lb/min (13.6 kg/min) for fast, efficient coverage
- 2000 psi (13.8 MPa) max fluid pressure supports high-viscosity applications
- Ideal for SPF insulation, roofing, and OEM fabrication environments
Advanced Heating & Hose Control
- 15 kW hybrid heaters provide stable material temperatures during continuous use
- Includes 200 ft internal heated hose with 20 ft Xcelerator whip hose for superior flexibility
- Independent Hose Control allows separate temperature regulation for A and B sides
Smart Controls & Diagnostics
- Touchscreen Advanced Display Module (ADM) for user-friendly system management
- GPS-enabled Reactor Connect offers full remote control and live system feedback
- Auto Pressure Balance ensures ratio accuracy with minimal manual adjustment
Efficient Design & Serviceability
- Direct drive hydraulic system eliminates belts and pulleys for quiet, low-maintenance operation
- Side-mounted fluid manifold with improved inlet filters enhances material flow and access
- Color-coded, keyed electrical connections simplify setup and reduce error risk
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Hydraulic Spray Foam Proportioner Package |
| Max Fluid Pressure | 2000 psi (13.8 MPa) |
| Max Flow Rate | 30 lb/min (13.6 kg/min) |
| Heating Capacity | 15 kW |
| Max Fluid Temperature | 180°F (82.2°C) |
| Max Hose Length | 320 ft (97.5 m) |
| Control Interface | Advanced Display Module (Touchscreen) |
| Reactor Connect | GPS + Cellular Connectivity |
| Mix Ratio | 1:1 Fixed |
| Material Compatibility | Spray Polyurethane Foam (SPF) |
