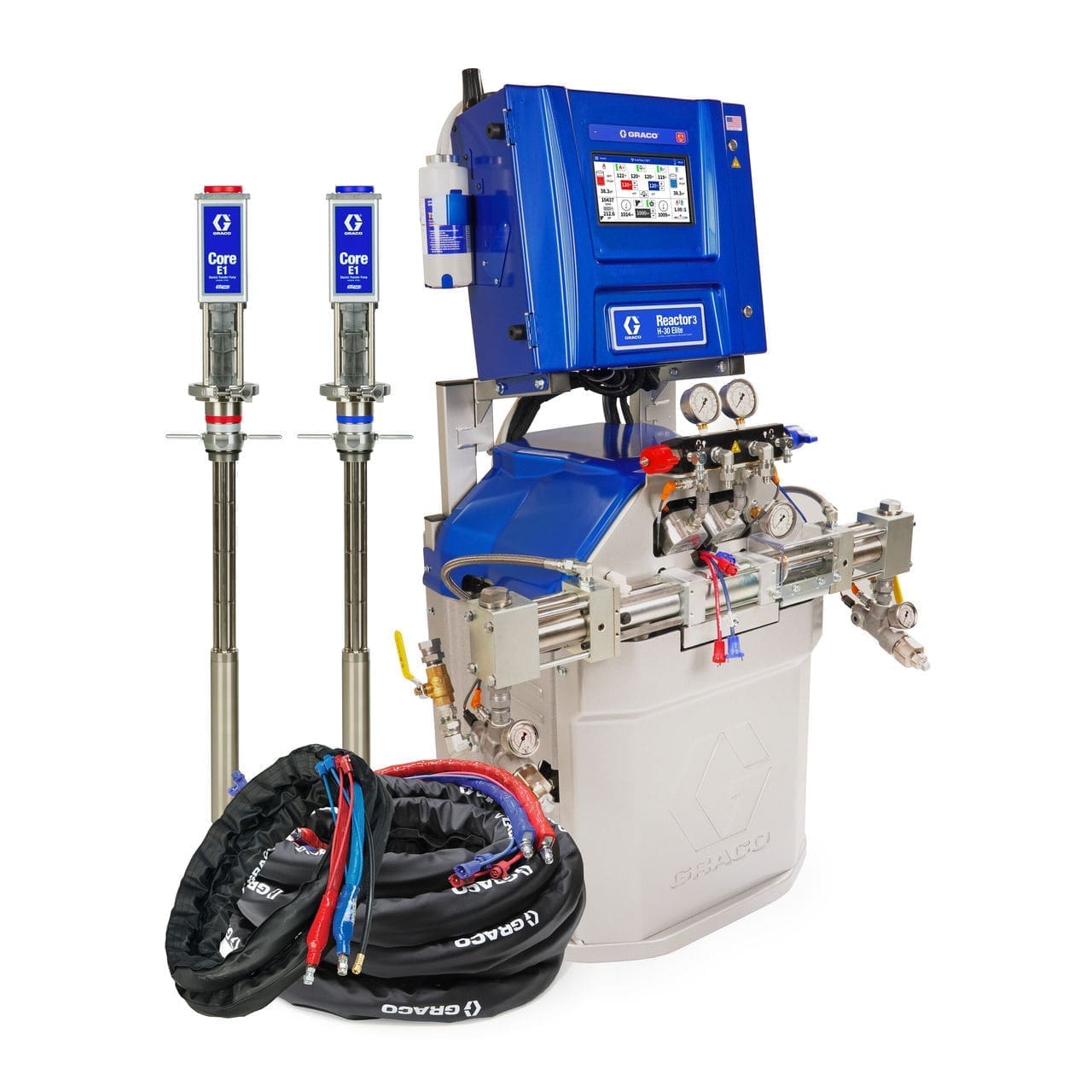

Graco Reactor 3 H-30 Elite Package – Part #CSR357
Product Overview
The Graco Reactor 3 H-30 Elite Package – CSR357 delivers top-tier performance for contractors requiring hydraulic power, remote access, and system precision. It includes Core E1 transfer pumps, a 50 ft heated hose, and a 20 ft whip, giving users both reach and consistency across challenging jobsites. Because it features a 15 kW hybrid heater, this system excels in maintaining material temperature across extended spray runs. Moreover, it delivers up to 31 lb/min at 2000 psi, enabling crews to cover more surface area in less time while maintaining quality. Additionally, Graco equips this unit with a large Advanced Display Module (ADM). This touchscreen control panel provides live data, diagnostics, and easy adjustment of pressure, heat, and spray mode. As a result, operators can streamline setup and reduce downtime significantly. Furthermore, the integrated Reactor Connect system offers cellular connectivity and GPS tracking. Contractors can monitor performance remotely, diagnose issues in real-time, and ensure the rig is functioning optimally—even when off-site.
Key Features
Direct Drive Hydraulic Power
- This system uses a direct drive motor that eliminates belts, pulleys, and flywheels
- Because of this design, it reduces vibration, improves energy efficiency, and lowers maintenance
- Additionally, hydraulic power ensures consistent spraying over long cycles
Advanced Display Module (ADM)
- The touchscreen ADM simplifies operation by putting all controls on one screen
- Users can view setpoints, alarms, diagnostics, and ratios without scrolling
- As a result, job setup becomes faster and more intuitive for every technician
Remote Oversight with Reactor Connect
- Built-in cellular module offers live monitoring from a mobile app or web dashboard
- GPS functionality allows real-time tracking and remote jobsite visibility
- Moreover, managers can review daily output and system health from anywhere
Heated Hose Integration and Ratio Assurance
- The Elite package includes 70 ft of total hose (50 ft heated + 20 ft whip)
- Dual-zone hose heating maintains spray material temperature consistently
- Because the system uses oval gear meters, it provides 1:1 ratio feedback in real time
Product Specifications
| Attribute | Details |
|---|---|
| Model | Reactor 3 H-30 Elite Package |
| Maximum Flow Rate | 31 lb/min (14.1 kg/min) |
| Maximum Working Pressure | 2000 psi (138 bar) |
| Heater Capacity | 15 kW hybrid heater |
| Hose Length Included | 50 ft heated + 20 ft whip (70 ft total) |
| Power Type | Hydraulic |
| Ratio Assurance | Oval Gear Flow Meters |
| Control Interface | Advanced Display Module (ADM) |
| Remote Monitoring | Reactor Connect (cellular + GPS) |
| Transfer Pumps | Core E1 |
