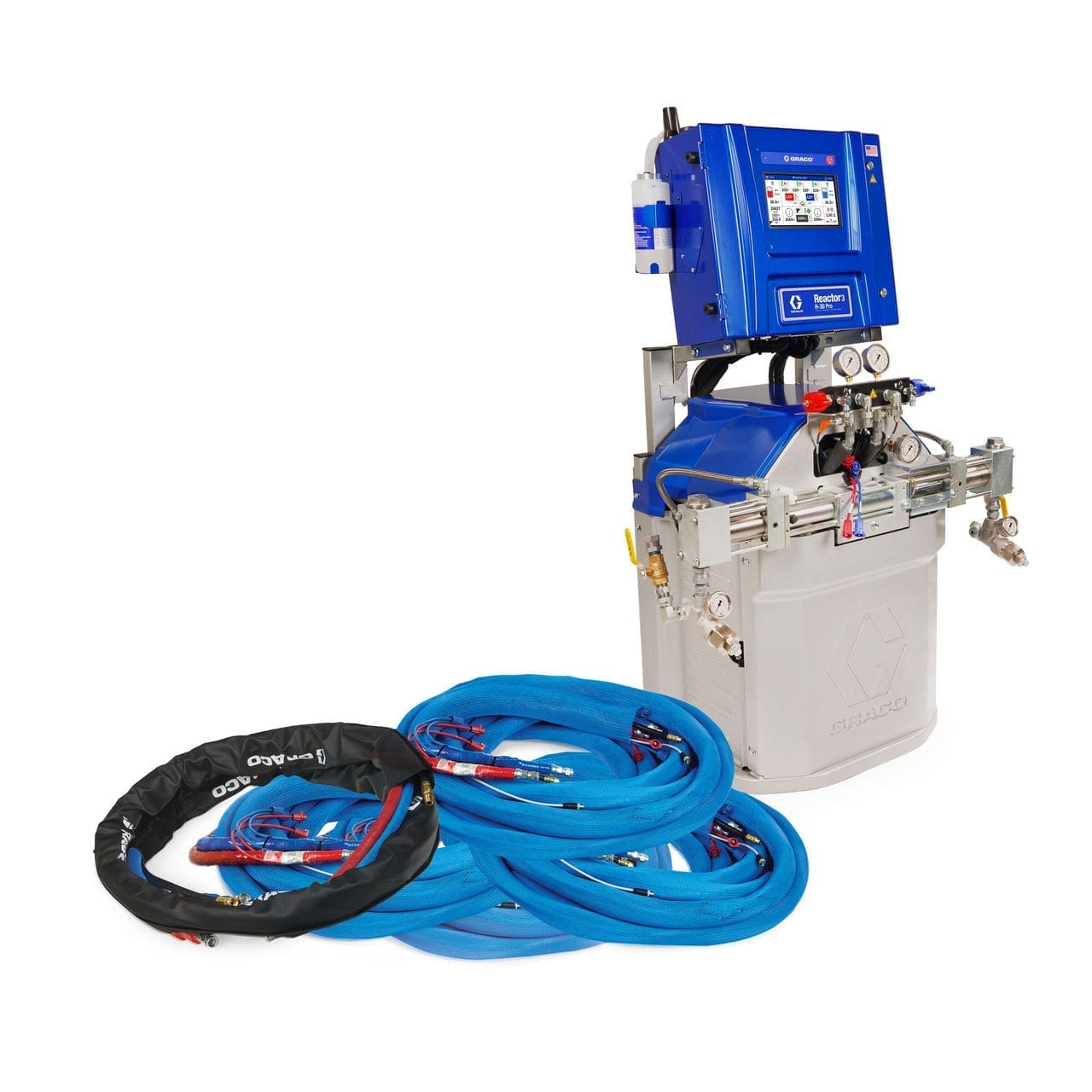

Graco Reactor 3 H-30 Elite Tier Spray Foam Proportioner Package – Part #EHR357
Product Overview
The Graco Reactor 3 H-30 Elite Tier (EHR357) is engineered for serious professionals who need speed, consistency, and adaptability in high-output spray foam insulation work. Thanks to its powerful 15 kW hybrid heaters, it maintains excellent temperature stability, even during extended use. This unit pushes up to 30 lb/min at 2000 psi, making it ideal for demanding industrial or commercial applications.
Additionally, the system features Graco’s intuitive Advanced Display Module (ADM), a high-resolution touchscreen interface that centralizes diagnostics, pressure balance control, and independent hose temperature regulation. Because of this digital integration, contractors can optimize spray patterns and minimize downtime more easily than ever before. With 210 ft of supported hose length, even large-scale jobs are easily handled.
Moreover, the Elite Tier includes built-in Wi-Fi, GPS remote support, and Reactor Connect for mobile system monitoring. These features empower your crew with unmatched flexibility while enabling remote troubleshooting and productivity tracking in real-time. The unit’s rugged, compact design ensures durability, while remaining easy to integrate into most spray rigs.
Key Features
High-Performance Output
- Delivers up to 30 lb/min (13.6 kg/min) for consistent, high-volume spraying
- Maintains fixed 1:1 material ratio under dynamic spray conditions
- Rated up to 2000 psi (13.8 MPa) for reliable pressure delivery
Intelligent Heating & Temperature Control
- Features 15 kW hybrid heater for fast and stable thermal regulation
- Supports up to 210 ft of heated hose with separate zone control
- Independent Hose Control (IHC) for precise A/B temperature settings
Digital Control System
- Touchscreen Advanced Display Module (ADM) for full-system control
- Auto Pressure Balance ensures smooth operation without manual recalibration
- Includes built-in system diagnostics, event logging, and service alerts
Connectivity & Serviceability
- Wi-Fi and GPS enabled for remote updates and support
- Reactor Connect mobile app allows real-time monitoring and control
- Compact, rugged frame ideal for mobile rig integration
Product Specifications
| Specification | Details |
|---|---|
| Product Type | Proportioner Package |
| Reactor Series | Reactor 3 H-30 Elite Tier |
| Output Rate | 30 lb/min (13.6 kg/min) |
| Max Fluid Pressure | 2000 psi (13.8 MPa) |
| Heating Capacity | 15 kW Hybrid Heater |
| Max Hose Length | 210 ft (64 m) |
| Control Interface | Touchscreen Advanced Display Module (ADM) |
| Connectivity | Wi-Fi, GPS, Reactor Connect App |
| Power Supply | 3-Phase, 230/400 VAC |
| Mix Ratio | 1:1 Fixed |
