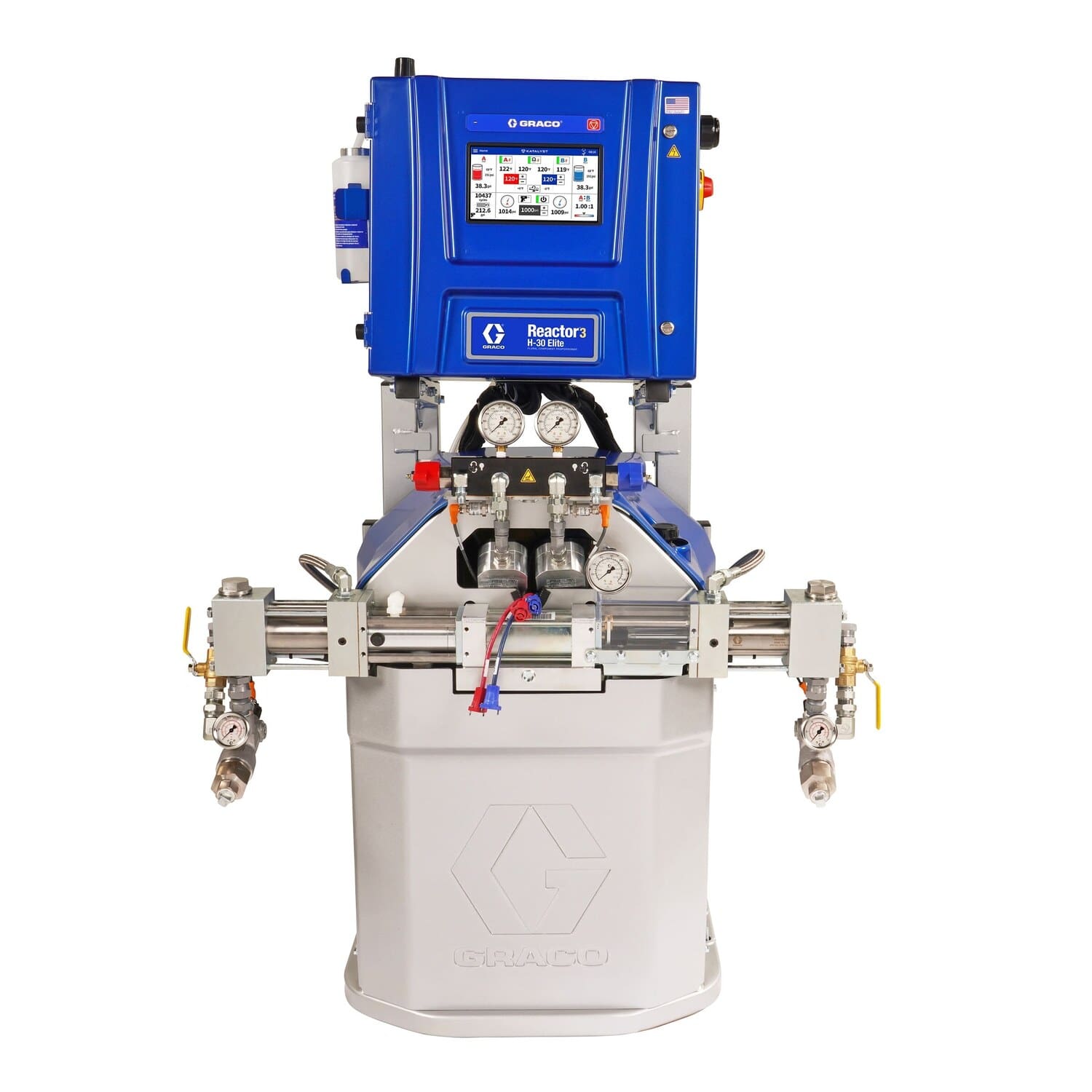

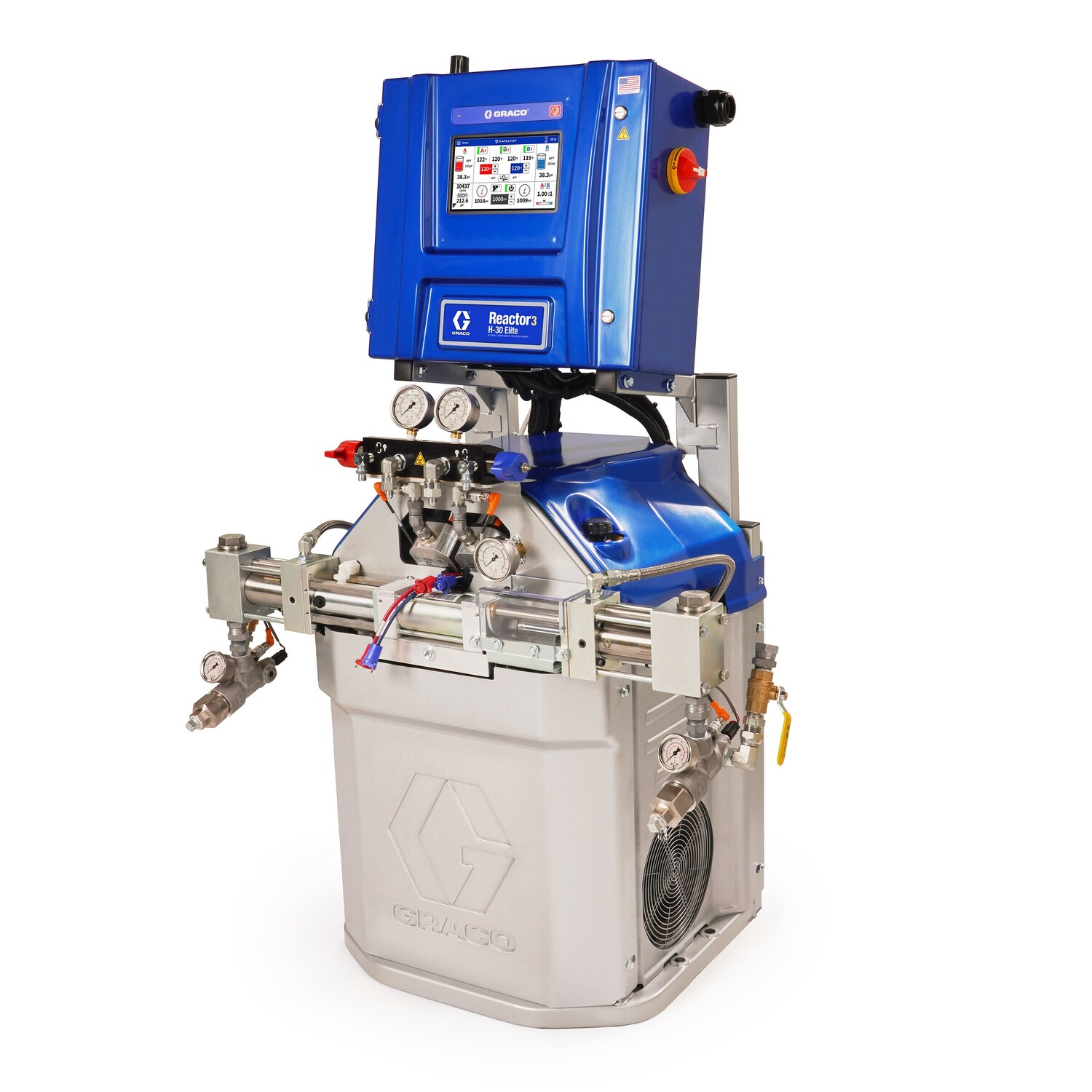

Graco Reactor 3 H-30 Elite Proportioner – Part #27R357
Product Overview
The Graco Reactor 3 H-30 Elite delivers powerful hydraulic performance and advanced digital control for professional spray foam contractors. Designed to handle the demands of residential, commercial, and OEM applications, this elite system combines precise material output, intuitive monitoring, and enhanced serviceability. With its innovative direct drive motor, oval gear flow meters, and dual-zone hose temperature control, the H-30 Elite provides unmatched ratio assurance and uptime. Built on the Reactor 3 platform, it’s compatible with Graco’s Reactor Connect app and features the Advanced Display Module (ADM) for full system diagnostics, GPS tracking, and job reporting.
Key Features
High-Performance Output
- Delivers up to 31 lb/min for large-scale production jobs
- 15 kW hybrid heaters maintain material temperature at full flow
- Up to 320 feet of heated hose supported
Direct Drive Efficiency
- No belts or flywheels — less maintenance, smaller footprint
- Quiet and consistent spray operation with horizontal pump design
- Enhanced fluid filtration protects system components
Advanced Monitoring & Control
- ADM touchscreen with full system control and diagnostics
- Reactor Connect platform with GPS, cellular alerts, and data logs
- Real-time ratio validation with oval gear flow meters
Optimized Usability
- Quick access oil service points reduce downtime
- Independent A/B hose temperature control ensures spray consistency
- Seamless rig integration with minimal configuration
Product Specifications
| Attribute | Details |
|---|---|
| Model | Reactor 3 H-30 Elite |
| Maximum Flow Rate | 31 lb/min (14.1 kg/min) |
| Maximum Working Pressure | 2000 psi (138 bar) |
| Heater Capacity | 15 kW hybrid heater |
| Hose Length Capacity | Up to 320 ft (97.5 m) |
| Power Source | Hydraulic |
| Control Interface | Advanced Display Module (ADM) |
| Remote Connectivity | Reactor Connect via cellular & app |
| Ratio Monitoring | Oval gear flow meters (real-time) |
| Compatible Hose Types | Graco Xtreme-Wrap, Xtreme-Duty hoses |
