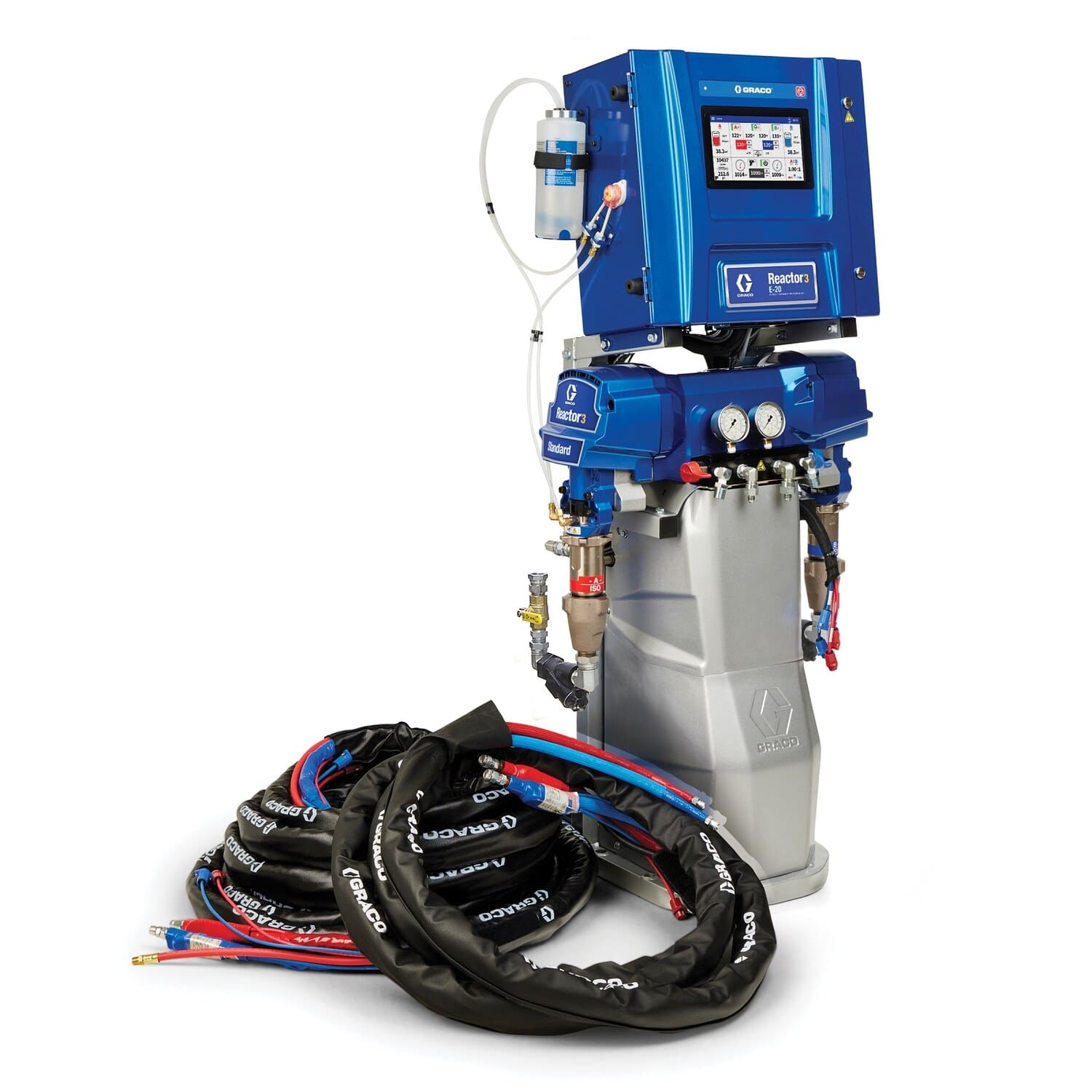

Graco Reactor 3 E-20 Standard Tier Spray Foam Proportioner Package – Part #ISR310
Reliable Spray Foam Proportioner System for Entry-Level Contractors
The Graco Reactor 3 E-20 Standard Tier Spray Foam Proportioner Package (ISR310) is designed for contractors focusing on smaller jobs or those new to the industry. With a 7 kW heater and a 50 ft internal heated hose, this system ensures consistent material temperature and efficient spraying. The intuitive touchscreen Advanced Display Module (ADM) simplifies operation, while features like Independent Hose Control enhance application accuracy.
Upgrade your rig with the Graco ISR310 to enhance productivity and achieve superior results on every job.
Key Features
Advanced System Intelligence
- ADM touchscreen interface for intuitive control and real-time monitoring
- Independent Hose Control allows separate temperature settings for A and B materials
- Active ISO Lube system with peristaltic pump for reduced maintenance
Efficient Heating & Pressure Management
- 7 kW heater ensures stable material temperature up to 190°F (88°C)
- Delivers up to 20 lb/min (9.1 kg/min) for fast, consistent foam application
- Supports up to 2000 psi (138 bar) fluid pressure for high-viscosity spraying
Flexible Electrical Compatibility
- Works with both single- and three-phase power inputs
- Voltage jumpers for easy changing between voltages
- Brushless motor for improved pressure/flow performance
Rugged Build for Mobile Spray Rigs
- Compact footprint with protected flow meters and hose ports
- Ready-to-install design for trailer or truck mounting
- Built-in ports for Remote Start/Stop and HMI access
Product Specifications
| Attribute | Value |
|---|---|
| System Type | Spray Foam Proportioner |
| Tier | Standard Tier |
| Heater Wattage | 7 kW |
| Maximum Flow Rate | 20 lb/min (9.1 kg/min) |
| Maximum Working Pressure | 2000 psi (138 bar) |
| Hose Type | Internal Heated |
| Hose Length | 50 ft |
| Power Options | 200–240V 1-ph / 3-ph DELTA, 350–415V 3-ph WYE |
| Amperage Draw | 56A (1-ph), 36A (3-ph DELTA), 24A (3-ph WYE) |
| Frequency | 50/60 Hz |
