Graco Reactor 3 E-20 Pro Tier Spray Foam Proportioner Package – Part #IHR313
High-Performance Spray Foam Proportioner System for Professional Contractors

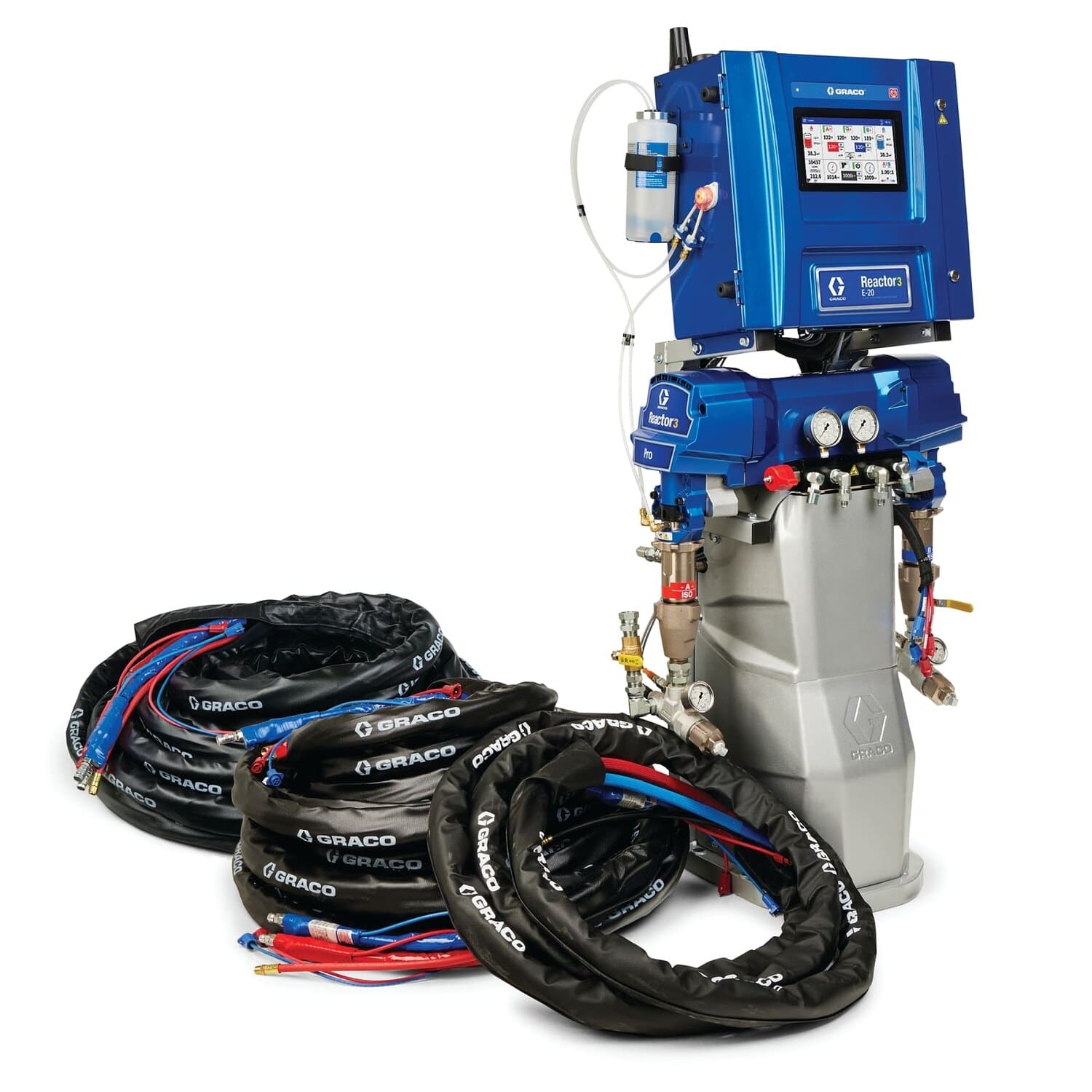

The Graco Reactor 3 E-20 Pro Tier Spray Foam Proportioner Package (IHR313) is built for mid-volume residential and commercial spray foam projects. Featuring a 10 kW heater and 200 ft of internal heated hose, this advanced system delivers consistent material temperature and dependable output of up to 20 lb/min.
The included Advanced Display Module (ADM) touchscreen provides intuitive navigation, real-time diagnostics, and remote updates. Graco’s proprietary Auto Pressure Balance ensures balanced material pressure and optimized yield throughout each spray session.
Order now to equip your rig with a smarter, more efficient spray foam proportioner designed for peak performance and reliability.
Key Features
Next-Gen Digital Control
- ADM touchscreen for streamlined operation and monitoring
- Remote cellular updates and diagnostics support
- Integrated job tracking and reporting tools
Efficient Pressure Management
- Auto Pressure Balance maintains consistency and yield
- Independent A/B hose heat for precise thermal control
- Advanced temperature boards improve heating accuracy
Flexible Electrical Compatibility
- Works with both single- and three-phase power inputs
- Selectable heater wattage to manage power draw
- Smart motor drive reduces maintenance frequency
Rugged Build for Mobile Spray Rigs
- Protected internal routing of heated hoses
- Ready-to-install design for trailer or truck mounting
- Built-in ports for Remote Start/Stop and HMI access
Product Specifications
| Attribute | Value |
|---|---|
| System Type | Spray Foam Proportioner |
| Tier | Pro Tier |
| Heater Wattage | 10 kW |
| Maximum Flow Rate | 20 lb/min (9.1 kg/min) |
| Maximum Working Pressure | 2000 psi (138 bar) |
| Hose Type | Internal Heated |
| Hose Length | 200 ft |
| Power Options | 200–240V 1-ph / 3-ph DELTA, 350–415V 3-ph WYE |
| Amperage Draw | 65A (1-ph), 39A (3-ph DELTA), 24A (3-ph WYE) |
| Frequency | 50/60 Hz |
