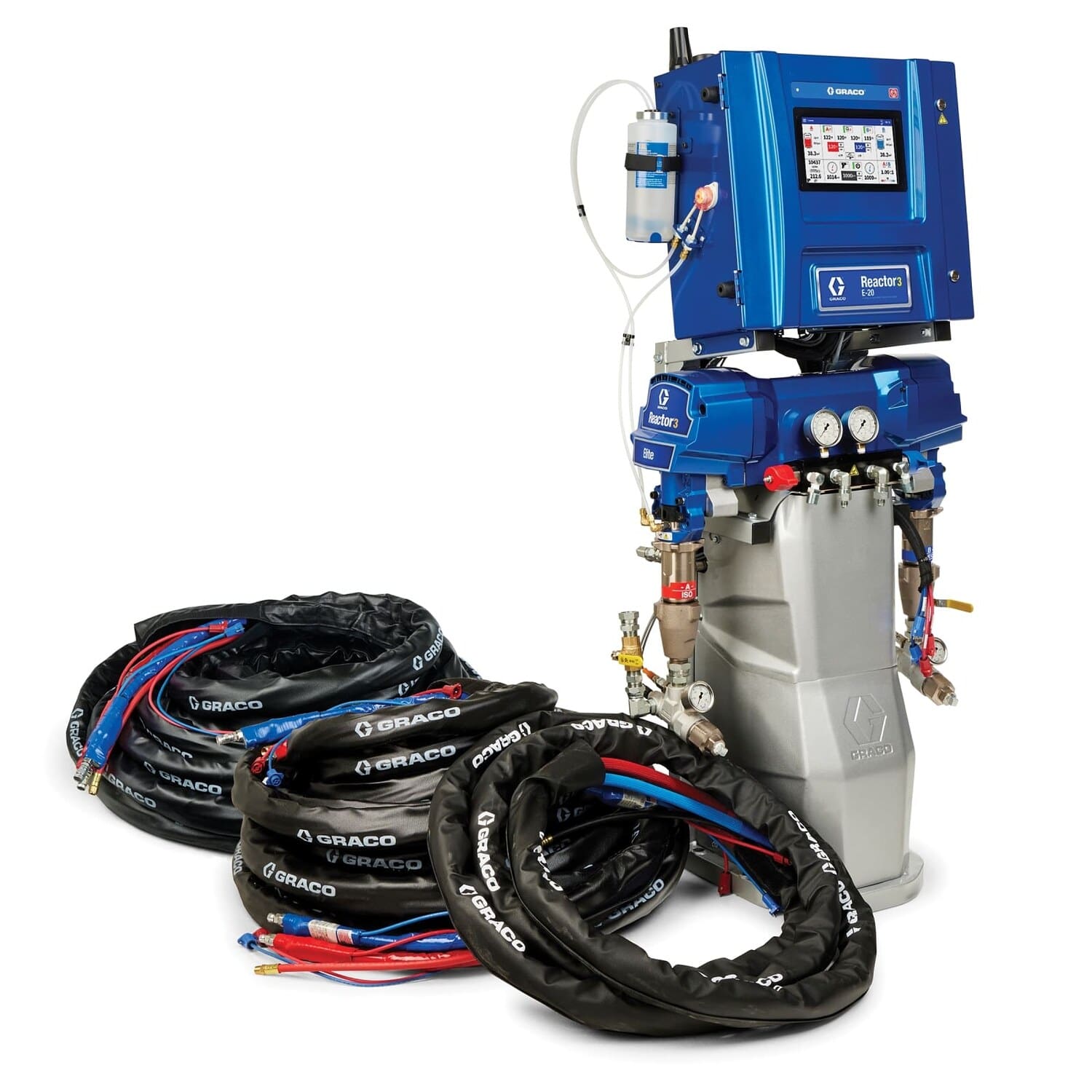

Graco Reactor 3 E-20 Elite Tier Spray Foam Proportioner – Part #EHR312
Product Overview
The Graco Reactor 3 E-20 Elite Tier Spray Foam Proportioner system delivers exceptional performance for mid- to high-volume spray foam applications. With its powerful 10 kW heater and extended 200 ft internally heated hose, this elite-tier system is engineered to meet the demands of contractors requiring optimal flow rate, pressure control, and system diagnostics.
Featuring an Advanced Display Module (ADM), the EHR312 offers a user-friendly touchscreen interface for simplified operation and real-time performance monitoring. Its intelligent lube management and material temperature control help extend component life while boosting daily job site productivity.
Invest in the Graco EHR312 today to optimize your rig and enhance spraying efficiency in every project.
Key Features
High Output Performance
- Delivers up to 20 lb/min (9.1 kg/min) for fast, consistent foam application
- Ideal for both open-cell and closed-cell spray foam insulation
Advanced Control System
- Integrated touchscreen ADM (Advanced Display Module)
- Provides real-time diagnostics, system settings, and error notifications
Efficient Heating & Hose System
- 10 kW heater ensures stable material temperature up to 190°F (88°C)
- 200 ft internal heated hose allows flexibility for large job sites
Durable & Compact Design
- ISO lube system with peristaltic pump extends machine life
- Smaller rig footprint with protected connections and flow meters
Product Specifications
| Specification | Details |
|---|---|
| Model | Reactor 3 E-20 – Elite Tier |
| Heater Wattage | 10 kW |
| Max Flow Rate | 20 lb/min (9.1 kg/min) |
| Max Working Pressure | 2000 psi (138 bar) |
| Max Fluid Temperature | 190°F (88°C) |
| Hose Heating Type | Internal Heated |
| Hose Length | 200 ft |
| Voltage Options | 200–240V 1-ph / 3-ph DELTA / 350–415V 3-ph WYE |
| Amperage | 65A (1-ph), 39A (3-ph DELTA), 24A (3-ph WYE) |
| Frequency | 50/60 Hz |
