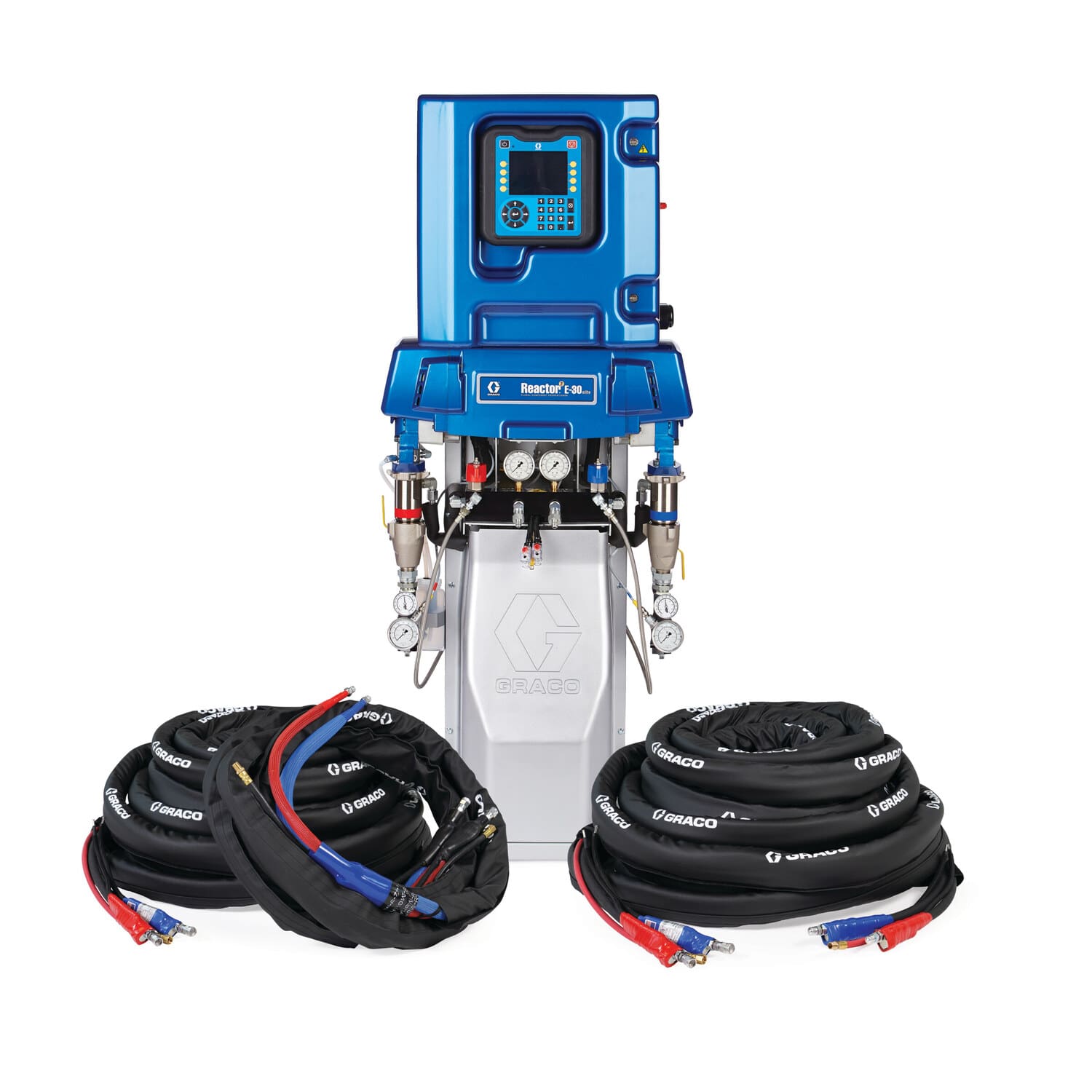

Graco Reactor 2 E‑30 Proportioner Package – Part #IH2111
Product Overview
The Reactor 2 E‑30 Proportioner Package IH2111 is a high-performance electric spray foam system designed for professional applications. Featuring a powerful 15 kW primary heater, a 200 ft internal heated hose, and a 20 ft heated whip, it maintains optimal material temperatures throughout long hose runs. Reactor Connect touchscreen controls with USB logging and QR-code diagnostics provide remote monitoring, troubleshooting, and data capture. :contentReference[oaicite:2]{index=2}
Built for rugged field use, the IH2111 consistently delivers up to 30 lb/min at 2000 psi, while its compact, service-friendly design reduces downtime. Protective features include surge protection, modular electronics, and an ergonomic frame. :contentReference[oaicite:3]{index=3}
Key Features
- Reactor Connect Control: Mobile access, onboard touchscreen, USB data logs, 24 chemical recipe memory, QR-code diagnostics :contentReference[oaicite:4]{index=4}
- Advanced Heating System: 15 kW primary heater, 200 ft internal heated hose + 20 ft whip maintaining up to 190 °F :contentReference[oaicite:5]{index=5}
- High Output Performance: Delivers up to 30 lb/min at 2000 psi, with max fluid temperature 190 °F :contentReference[oaicite:6]{index=6}
- Designed for Durability: Surge protection, compact footprint, easy service access :contentReference[oaicite:7]{index=7}
Product Specifications
| Attribute | Specification |
|---|---|
| Max Fluid Pressure | 2000 psi (13.8 MPa) |
| Max Output Rate | 30 lb/min (13.6 kg/min) |
| Primary Heater Power | 15 kW |
| Internal Heated Hose | 200 ft (61 m), internal multi‑hose |
| Heated Whip | 20 ft (6 m) |
| Heated Hose Voltage | 240 V |
| Power Supply | Electric, 230 V (1‑ & 3‑Phase) |
| Max Fluid Temp | 190 °F (88 °C) |
| Mix Ratio | 1:1 |
| Display Interface | Reactor Connect Touchscreen |
