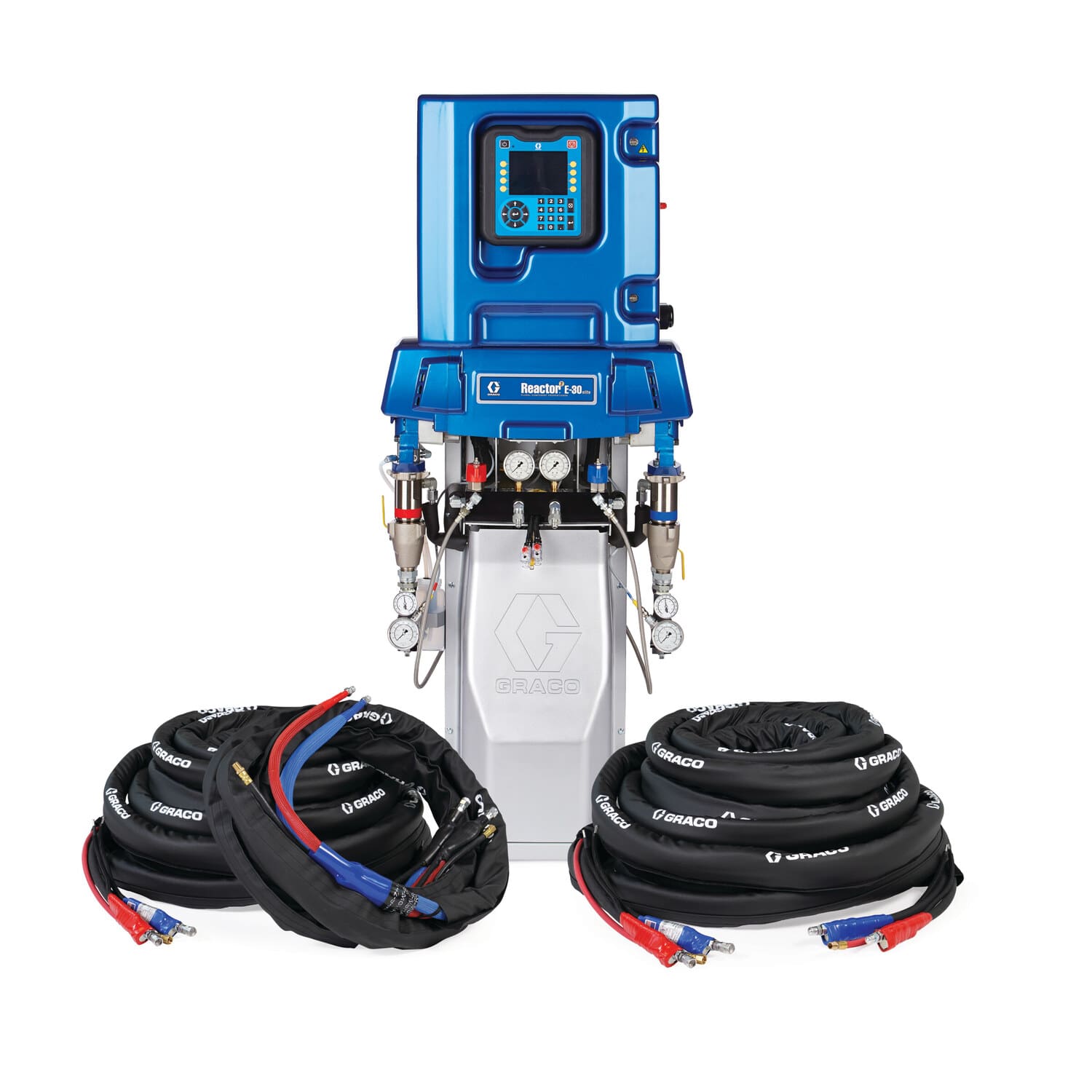

Graco Reactor 2 E‑30 Proportioner Package – Part #IH2110
Product Overview
The Reactor 2 E‑30 Proportioner Package IH2110 is a compact, high-performance electric spray foam system featuring a 10 kW heater, 200 ft internal heated hose, and 20 ft heated whip. Equipped with Reactor Connect touchscreen controls, it provides real-time monitoring, USB data downloads, and QR-code diagnostics for simplified jobsite management.
Capable of delivering up to 30 lb/min at 2000 psi, this system maintains fluid temperature consistently across hose lengths. Its rugged frame, surge protection, and service-friendly design minimize downtime and support field reliability.
Key Features
- Smart Controls: Reactor Connect touchscreen, project logging, USB data export, QR-code diagnostics
- Efficient Heating: 10 kW heater with 200 ft internal hose + 20 ft heated whip, temp up to 190 °F
- High Output: Up to 30 lb/min material flow at 2000 psi
- Robust Design: Surge protection, compact build, easy-access electronics
Product Specifications
| Attribute | Specification |
|---|---|
| Maximum Fluid Pressure | 2000 psi (13.8 MPa) |
| Maximum Output Rate | 30 lb/min (13.6 kg/min) |
| Primary Heater Power | 10 kW |
| Internal Heated Hose Length | 200 ft (61 m), multi‑hose |
| Heated Whip Length | 20 ft (6 m) |
| Heated Hose Voltage | 240 V |
| Power Supply | Electric, 230 V (1‑ & 3‑Phase) |
| Maximum Fluid Temperature | 190 °F (88 °C) |
| Fluid Mix Ratio | 1:1 |
| Display Interface | Reactor Connect Touchscreen |
