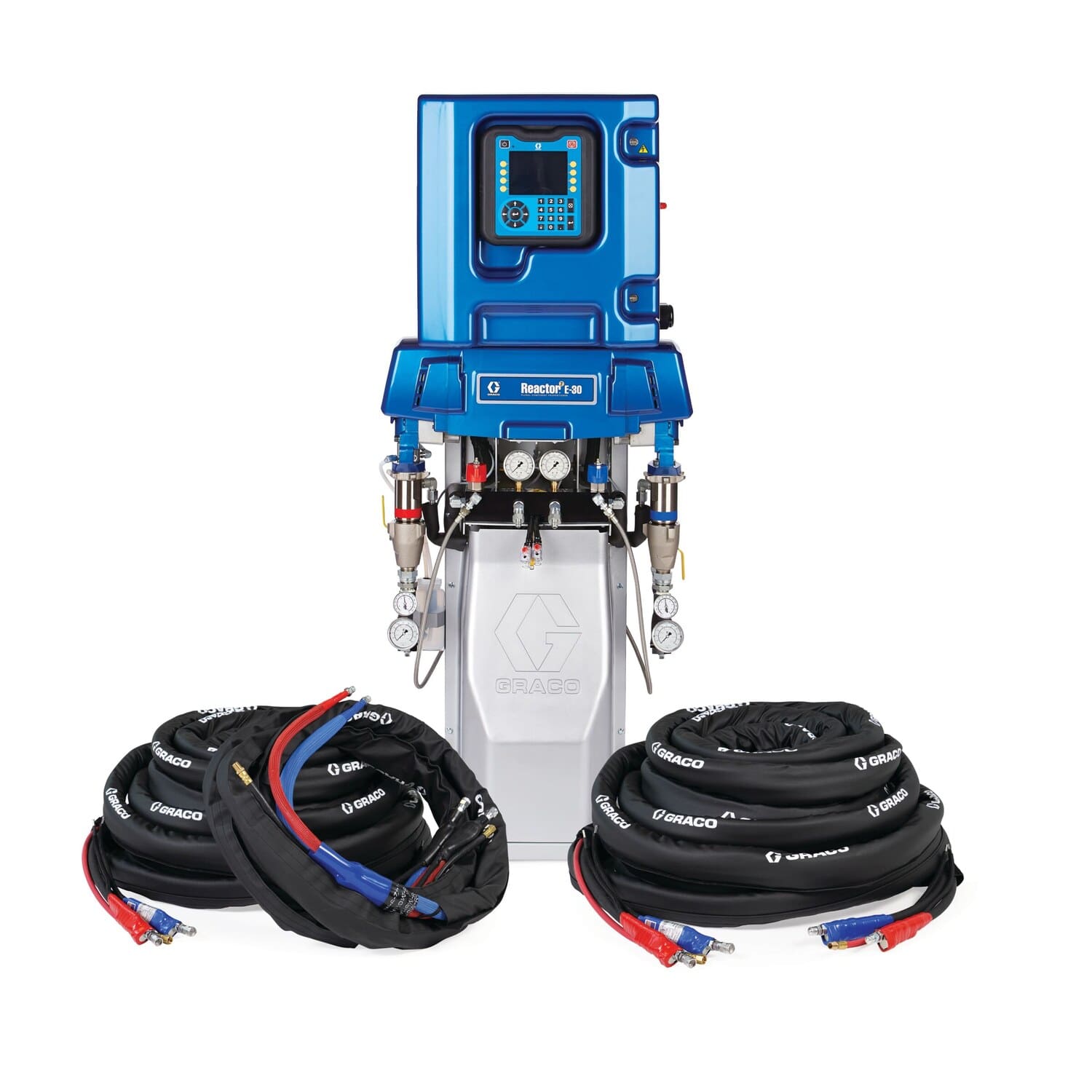

Graco Reactor 2 E‑30 Proportioner Package – Part #IH2011
Product Overview
The Reactor 2 E‑30 Proportioner Package IH2011 provides professional-grade performance with a 15 kW heater, 200 ft heated hose, and 20 ft heated whip—ideal for demanding spray foam jobs. Reactor Connect touchscreen delivers real-time monitoring, diagnostics, and USB data logging.
Designed for consistent output over long hose runs and rugged field durability, this system minimizes downtime with QR-coded service points, durable electronics, and easy maintenance access. Compact and built for professional rigs.
Key Features
- Reactor Connect Controls: Remote access via mobile, touchscreen UI, project logs
- High-Output Heating: 15 kW heater, 200 ft hose + 20 ft whip, maintains up to 190 °F
- Performance & Precision: Up to 30 lb/min output at 2000 psi with tight control
- Pro Service Design: QR-coded components, surge protection, compact ergonomic build
Product Specifications
| Attribute | Specification |
|---|---|
| Maximum Fluid Pressure | 2000 psi (13.8 MPa) |
| Maximum Output Rate | 30 lb/min (13.6 kg/min) |
| Primary Heater Power | 15 kW |
| Internal Heated Hose Length | 200 ft (61 m), multi‑hose |
| Heated Whip Hose | 20 ft (6 m) |
| Heated Hose Voltage | 240 V |
| Power Supply | Electric, 230 V (1‑ & 3‑Phase) |
| Max Fluid Temperature | 190 °F (88 °C) |
| Mix Ratio | 1:1 |
| Display Interface | Reactor Connect Touchscreen |
