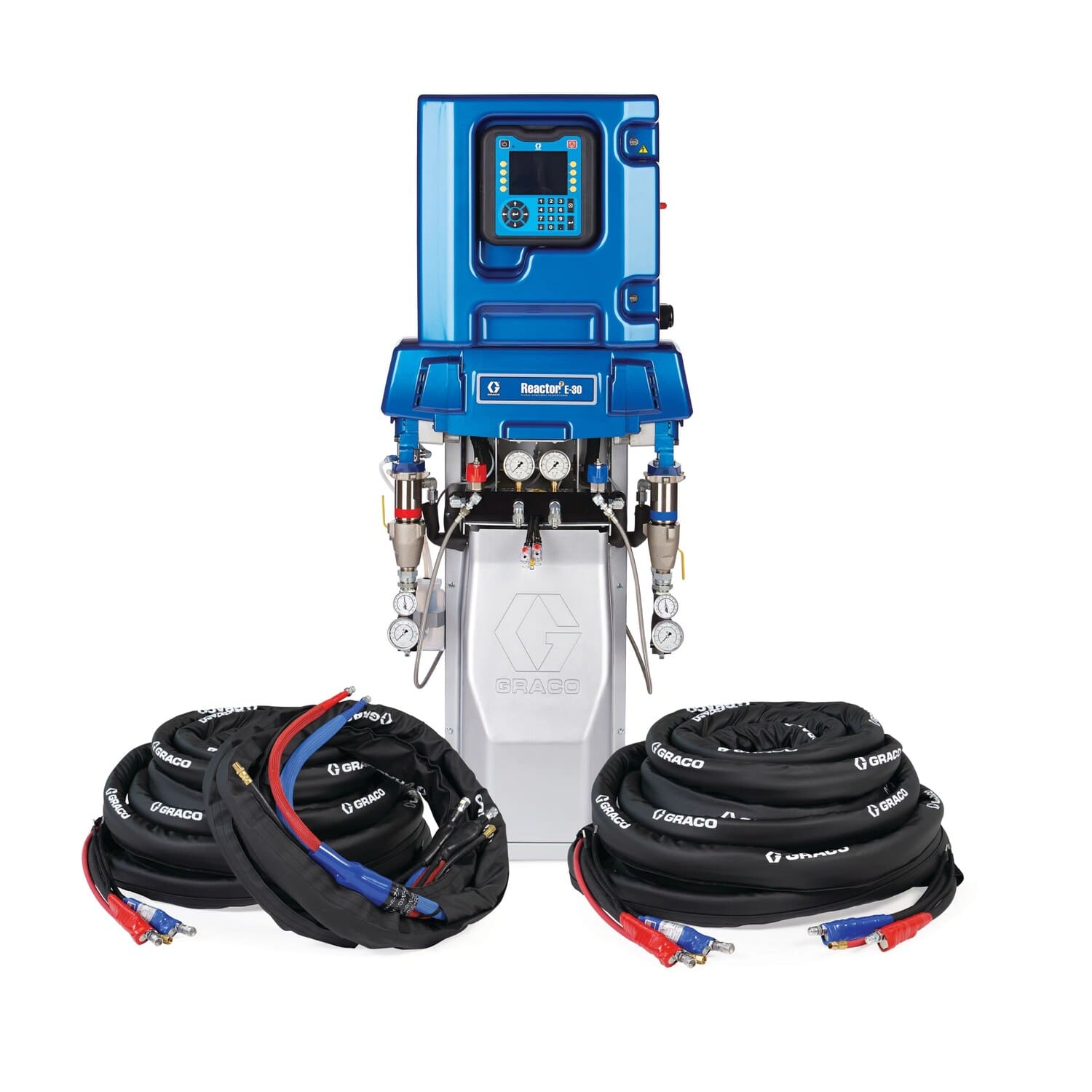

Graco Reactor 2 E‑30 Proportioner Package – Part #IH2010
Product Overview
The Reactor 2 E‑30 Proportioner Package IH2010 combines professional-grade spray foam capability with a compact, efficient design. Powered by a 10 kW heater, it includes a 200 ft internal heated hose and a 20 ft heated whip—ideal for long-reach applications. Reactor Connect and intuitive touchscreen controls offer real-time performance monitoring, USB data logging, and remote diagnostics for streamlined operation.
Reliable for both residential and commercial spray foam jobs, the IH2010 maintains consistent fluid temperature and pressure across hose lengths. Its rugged frame, QR-coded components, and service‑friendly layout reduce downtime and speed up maintenance on-site.
Key Features
- Advanced Control & Monitoring: Reactor Connect touchscreen, data logging, QR‑code diagnostics
- Efficient Heating: 10 kW primary heater, 200 ft internal hose + 20 ft heated whip
- High Output: Supports up to 30 lb/min material delivery
- Compact & Serviceable: Ergonomic design with easy access to electronics and filters
Product Specifications
| Attribute | Specification |
|---|---|
| Maximum Fluid Working Pressure | 2000 psi (13.8 MPa) |
| Maximum Output Rate | 30 lb/min (13.6 kg/min) |
| Primary Heater Power | 10 kW |
| Internal Heated Hose Length | 200 ft (61 m), multi‑hose configuration |
| Heated Whip Length | 20 ft (6 m) |
| Heated Hose Voltage | 240 V |
| Power Supply | Electric, 230 V (1‑Phase / 3‑Phase) |
| Temperature Control Range | Up to 190 °F (88 °C) |
| Fluid Mix Ratio | 1:1 |
| Display Module | Reactor Connect Touchscreen Interface |
