The HandiFoam® FR (HFO) II-600 (P12056) is a premium two-component, low-pressure spray polyurethane foam system designed to fill and insulate large voids and surfaces. Its superior adhesion properties create a seamless air barrier, reducing drafts, improving indoor air quality, and lowering heating and cooling costs.
This non-flammable, low-GWP spray foam meets strict environmental standards, ensuring compliance across North America. It is UL GREENGUARD Gold Certified, making it a trusted choice for both residential and commercial insulation applications.
Key Benefits:
✅ Covers 600 square feet at 1-inch thickness
✅ Creates an airtight seal, preventing energy loss
✅ Meets ASTM E84 Class A(1) at 2” thickness
✅ UL GREENGUARD Gold Certified for low emissions
✅ Dispensed using the patented Handi-Gun® system
✅ ColorWise® Long Cone Nozzles (10-pack included) ensure optimal spray pattern and adhesion
✅ Available in both disposable and refillable sizes
For best results, maintain chemical temperature between 70–85°F (21–29°C) during application.
Specifications:
| Property | Value |
|---|---|
| Coverage | 600 square feet at 1” thick |
| R-Value (Initial) | 7.02 at 1” thick, 13.54 at 2” thick |
| R-Value (Aged) | 6.44 at 1” thick, 12.30 at 2” thick |
| Density (Free Rise) | 1.75 lbs/ft³ (28.0 kg/m³) |
| Density (In-Place) | 1.90 lbs/ft³ (30.4 kg/m³) |
| Tack-Free Time | 15–30 seconds |
| Cuttable Time | 10 minutes (estimate) |
| Cell Structure | >90% closed-cell content |
| Fire Rating | ASTM E84 at 2” thickness |
| Flame Spread | 10 |
| Smoke Developed | 350 |
| Approvals | UL GREENGUARD Gold Certified |
| Testing in Progress | CCMC |

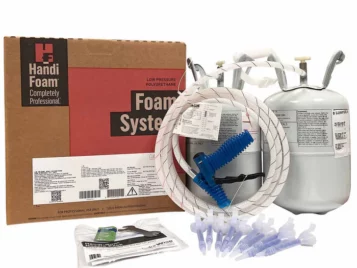

What’s Included in the Box:
✔ Two chemical cylinders (Component A & Component B)
✔ Patented Handi-Gun® Dispensing Unit w/25′ Gun Hose Assembly
✔ 10 ColorWise® Long Cone Nozzles for superior spray control
✔ Operating instructions manual
✔ Safety Data Sheets (SDS)
Ideal Applications:
- Residential and commercial insulation
- Air sealing around doors, windows, and gaps
- Soundproofing and energy efficiency improvements
- General construction and weatherization
